926882-3 | AMP

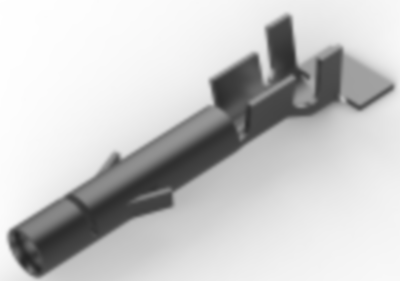

Receptacle, 0.5-2.1 mm², AWG 20-14, crimp connection, tin-plated, 926882-3
Unit Price (€ / pc.)
0.0536 € *
Available: 3,750 pcs.
Leadtime: On Request **
Total Price:
5.36 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0536 €
200 pcs.
0.0488 €
500 pcs.
0.0452 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female contact on original reels.
Contact material: phosphor bronze. Contact finish: tinned.
Technical attributes (type, for wire cross-section, insulation diameter, lenght L, number of female contact per reel): 0-0926882-3, 0.5 to 2.1mm²², 1.5 to 3.3 mm, L 19.3 mm, 5000 items
Technical specifications
Version | receptacle | |
AWG cross-section | AWG 20-14 | |
Insulation diameter | 3.3 mm | |
Contact connection | crimp connection | |
Contact material | phosphor bronze | |
Contact surface Connection range | tin-plated | |
Contact surface mating area | tin-plated | |
contact surface | tin-plated | |
Cable cross-section | 0.5-2.1 mm² |
Download
Logistics
Country of origin | US |
Customs tariff number | 85366990 |
Original Packaging | Reel with 5,000 pieces |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
