926898-1 | AMP

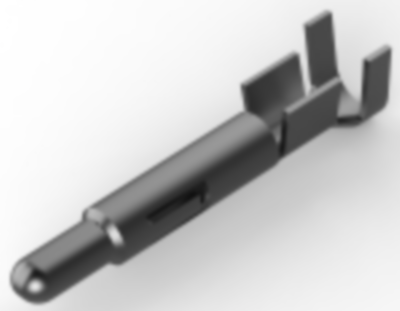

Pin contact, 0.5-2.0 mm², AWG 20-14, crimp connection, tin-plated, 926898-1
Unit Price (€ / pc.)
0.1654 € *
Available: 36,952 pcs.
Leadtime: 13 Weeks **
Total Price:
8.27 € *
Price list
Quantity
Price per unit*
50 pcs.
0.1654 €
100 pcs.
0.1499 €
500 pcs.
0.1309 €
1000 pcs.
0.1131 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male contact for general-purpose Mate-N-Lok connectors.
Contact material: brass. Contact finish: tinned. Contact version: slotted.
Technical attributes (type, for wire cross-section, insulation diameter, dimension L, contact finish): 0-0926898-1, 0.5 to 2.1mm²², 1.5 to 3.3 mm, L 20.1 mm, tinned
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 20-14 | |
| Insulation diameter | 3.3 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.5-2.0 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Bulk with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
