926898-3 | AMP

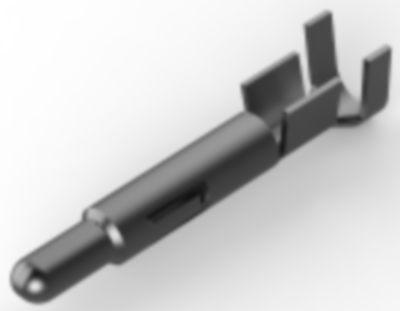

Pin contact, 0.5-2.0 mm², AWG 20-14, crimp connection, tin-plated, 926898-3
Unit Price (€ / pc.)
0.1571 € *
Available: 471 pcs.
Leadtime: On Request **
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1571 €
10 pcs.
0.1380 €
50 pcs.
0.1166 €
100 pcs.
0.0964 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male contact for general-purpose Mate-N-Lok connectors.
Contact material: phosphor bronze. Contact finish: tinned. Contact version: slotted.
Technical attributes (type, for wire cross-section, insulation diameter, lenght L, contact finish): 0-0926898-3, 0.5 to 2.1mm²², 1.5 to 3.3 mm, L 20.1 mm, tinned
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 20-14 | |
| Insulation diameter | 3.3 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.5-2.0 mm² |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
