926963-2 | AMP

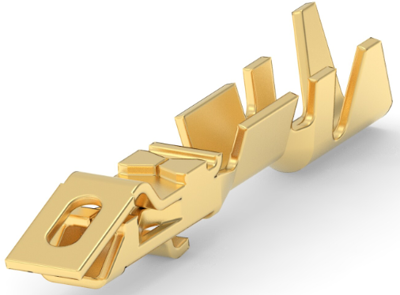

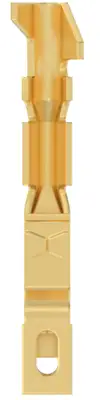

Receptacle, AWG 26-20, crimp connection, gold-plated, 926963-2
Unit Price (€ / pc.)
1.2495 € *
Available: 16,065 pcs.
Available in 5 Days: 333 pcs.
Leadtime: 26 Weeks **
contact series Locking Clip for 0.63 x 0.63 mm square pins, type .-008./0-092.
Made of tin bronze, selective gold-plating or tinned, stainless steel latching spring; Pin receptacle: 8.0 mm. Rated current: 2.0 A. type 0-0087191-1 and 5-0087191-2: for 0.05 to 0.09 mm² conductor cross-section, type 0-0926963-..: for 0.12 to 0.56 mm² conductor cross-section.
Type: 0-0926963-2, gold-plated
Technical specifications
| Ausführung | Buchsenkontakt | |
| AWG-Leiterquerschnitt | AWG 26-20 | |
| Isolationsdurchmesser | 0,9-1,6 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Kupfer-Zinn | |
| Kontaktoberfläche | vergoldet |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
