926984-2 | AMP

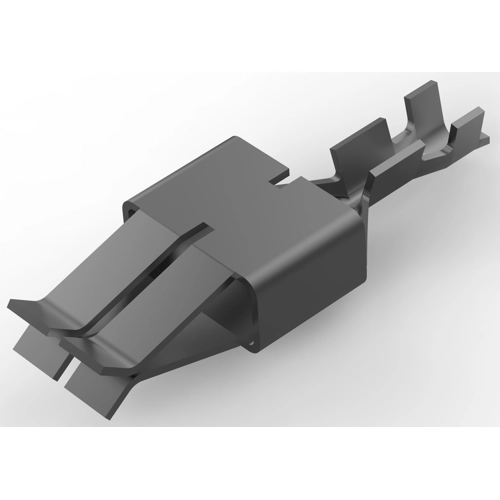

Receptacle, 0.2-0.5 mm², AWG 24-20, crimp connection, tin-plated, 926984-2
Order No.: 35P4164
EAN: 4099889637342
MPN:
926984-2
Unit Price (€ / pc.)
0.1547 € *
Available: 0 pcs.
Available in 5 Days: 21,000 pcs.
Leadtime: 25 Weeks **
Contacts for motor vehicles, 926984-2, AMP
Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 5.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 24 - 20 AWG, Wire Size: 0.2 - 0.5 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 1-1,6 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface Connection range | verzinnt | |
| contact surface | verzinnt | |
| Cable cross-section | 0,2-0,5 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
