927771-3 | AMP
Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 927771-3
Order No.: 36P3404
EAN: 4099889644883
MPN:
927771-3
Unit Price (€ / pc.)
0.0988 € *
Available: 0 pcs.
Available in 5 Days: 516,000 pcs.
Leadtime: 29 Weeks **
Total Price:
0.10 € *
Price list
Quantity
Price per unit*
4000 pcs.
0.0988 €
8000 pcs.
0.0976 €
*incl. VAT plus shipping costs
**Subject to prior sale

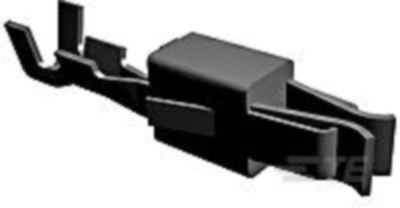

Socket contact, 927771-3, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 0.5 - 1 mm², Wire Size Search: 17 AWG, 18 AWG, 19 AWG, Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², Wire Insulation Diameter: 1.4 - 2.3 mm, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 20-17 | |
| Insulation diameter | 1.4-2.3 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.5-1.0 mm² |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85369095 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
