927860-2 | AMP

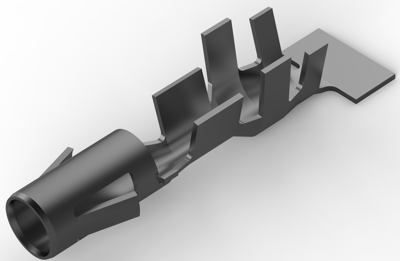

Receptacle, 1.0-2.5 mm², AWG 17-13, crimp connection, 927860-2
Order No.: 34P6510
EAN: 4099889634266
MPN:
927860-2
Unit Price (€ / pc.)
0.2166 € *
Available: 0 pcs.
Leadtime: On Request **
Connector contact, 927860-2, TE Connectivity
Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 250 VAC, Contact Length: 20 mm, Contact Type: Socket, Contact Mating Area Plating Material: Pre-Tin, Wire Contact Termination Area Plating Material: Pre-Tin, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 2.1 - 3.1 mm, Wire Size: 17 - 13 AWG, Wire Size: 1 - 2.5 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 17-13 | |
| Insulation diameter | 2.1-3.1 mm | |
| Contact connection | crimp connection | |
| Contact material | copper-tin | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 1.0-2.5 mm² |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
