929398-1 | AMP

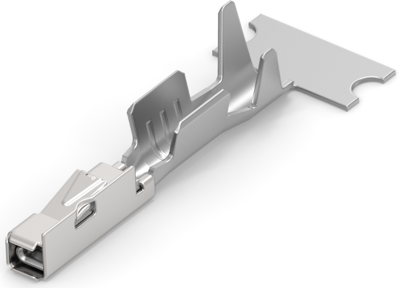

Receptacle, 0.75-1.5 mm², AWG 18-15, crimp connection, tin-plated, 929398-1
Order No.: 36P1384
EAN: 4099889642292
MPN:
929398-1
Unit Price (€ / pc.)
0.2404 € *
Available: 0 pcs.
Leadtime: On Request **
Contacts for motor vehicles, 929398-1, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.2 mm, Mating Tab Thickness: 0.63 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.75 - 1.5 mm², Wire Size Search: 0.75 mm², 0.85 mm², 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², Wire Size Search: 15 AWG, 6 AWG, 17 AWG, Wire Insulation Diameter: 1.7 - 2.4 mm, 105 °C, 110 °C, 120 °C, Operating Temperature Range: -40 - 120 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 18-15 | |
| Insulation diameter | 1.7-2.4 mm | |
| Contact connection | crimp connection | |
| Contact material | copper-nickel alloy | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.75-1.5 mm² |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
