964202-1 | AMP

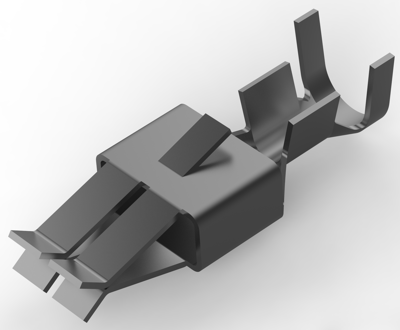

Receptacle, 1.0-2.5 mm², AWG 17-13, crimp connection, tin-plated, 964202-1
Unit Price (€ / pc.)
0.1297 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
2,334.78 € *
*incl. VAT plus shipping costs
**Subject to prior sale
18000 pcs.
0.1297 €
Contacts for motor vehicles, 964202-1, AMP
Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 5.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 17 - 13 AWG, Wire Size: 1 - 2.5 mm², Operating Temperature (Max): 105 °C, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 17-13 | |
| Insulation diameter | 2,4-3,7 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| contact surface | verzinnt | |
| Cable cross-section | 1,0-2,5 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
| Original Packaging | Rolle mit 2.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
