964203-5 | AMP

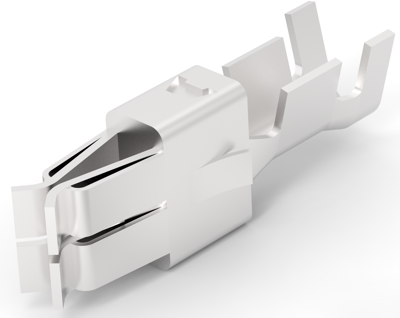

Receptacle, 1.0-2.5 mm², AWG 17-13, crimp connection, silver-plated, 964203-5
Unit Price (€ / pc.)
0.5474 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.55 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5474 €
10 pcs.
0.4998 €
50 pcs.
0.4522 €
100 pcs.
0.4046 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 964203-5, AMP
Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 5.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Silver (Ag), Automotive terminal Termination Method: Crimp, Wire Size: 17 - 13 AWG, Wire Size: 1 - 2.5 mm², Operating Temperature (Max): 140 °C, Operating Temperature Range: -40 - 140 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 17-13 | |
| Insulation diameter | 2.2-3 mm | |
| Contact connection | crimp connection | |
| Contact material | copper-iron alloy | |
| Contact surface Connection range | silver-plated | |
| contact surface | silver-plated | |
| Cable cross-section | 1.0-2.5 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
