964261-2 | AMP
Receptacle, 0.2-0.5 mm², AWG 24-20, crimp connection, tin-plated, 964261-2
Order No.: 36P3301
EAN: 4099889644227
MPN:
964261-2
Unit Price (€ / pc.)
0.1773 € *
Available: 0 pcs.
Leadtime: On Request **

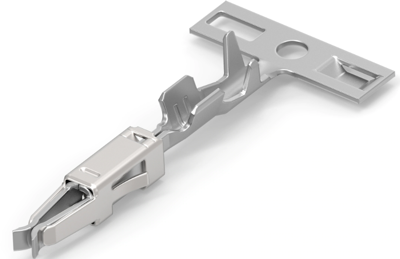

Socket contact, 964261-2, TE Connectivity
Sealable: No, Primary Locking Feature: Locking Lance, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.6 mm, Mating Tab Thickness: 0.6 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 0.2 -0.5 mm², Wire Size Search: 20 AWG, 21 AWG, 22 AWG, 23 AWG, Wire Size Search: 0.2 mm², 0.22 mm², 0.25 mm², 0.3 mm², 0.35 mm², 0.4 mm², 0.5 mm², Wire Insulation Diameter: 1.2 - 1.4 mm, Operating Temperature Range: -40 - 120 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 1.2-1.4 mm | |
| Contact connection | crimp connection | |
| Contact material | copper-iron alloy | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.2-0.5 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
