967543-1 | AMP

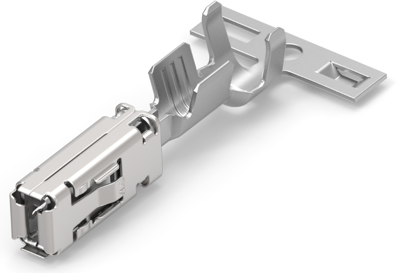

Receptacle, 1.5-2.5 mm², AWG 17-13, crimp connection, tin-plated, 967543-1
Order No.: 35P8999
EAN: 4099889640038
MPN:
967543-1
Unit Price (€ / pc.)
0.3094 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.31 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3094 €
10 pcs.
0.2892 €
100 pcs.
0.2582 €
500 pcs.
0.2332 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 967543-1, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Family Seal, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 1 - 2.5 mm², Wire Size Search: 1.5 mm², 2 mm², 2.5 mm², Wire Insulation Diameter: 1.9 - 3 mm, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 17-13 | |
| Insulation diameter | 1.9-3 mm | |
| Contact connection | crimp connection | |
| Contact material | copper-nickel alloy | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 1.5-2.5 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
