969028-2 | AMP
Tab, 0.2-0.5 mm², AWG 24-20, crimp connection, tin-plated, 969028-2
Order No.: 36P3277
EAN: 4099889644074
MPN:
969028-2
0-0969028-2
Unit Price (€ / pc.)
0.3023 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.30 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3023 €
10 pcs.
0.2749 €
100 pcs.
0.2475 €
500 pcs.
0.2237 €
*incl. VAT plus shipping costs
**Subject to prior sale

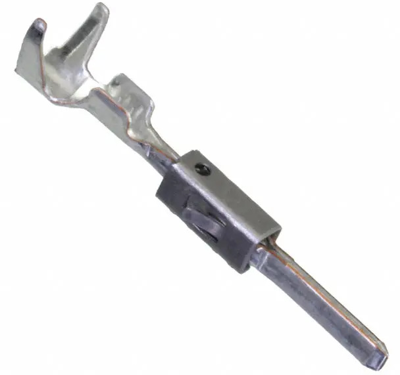

Tab contact, 969028-2, AMP
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal Type: Tab, Mating Tab Width: 1.6 mm, Mating Tab Thickness: 0.6 mm, Interface Plating: Tin (Sn), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 24 - 20 AWG, Wire Size: 0.2 - 0.5 mm², Wire Size Search: 0.2 mm², 0.25 mm², 0.3 mm², 0.4 mm², 0.5 mm², Wire Size Search: 20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG, Wire Insulation Diameter: 1.15 - 1.6 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 - 120 °C, Compatible With Wire Base Material: Copper.
Technical specifications
| Version | tab | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 1.15-1.6 mm | |
| Contact connection | crimp connection | |
| Contact material | copper-iron alloy | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.2-0.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
