1658606-1 | AMP

D-Sub socket, 50 pole, standard, equipped, straight, IDC connection, 1658606-1

Order No.: 55F5548
EAN: 4099889807363
MPN:
1658606-1
0-1658606-1
Series: AMPLIMITE

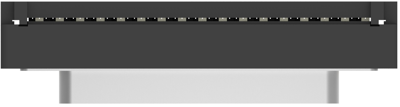

1658606-1 AMP D-Sub Connectors Image 1

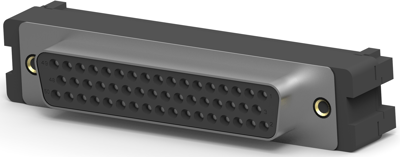

1658606-1 AMP D-Sub Connectors Image 2

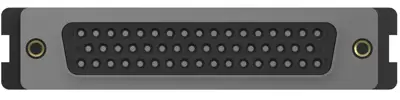

1658606-1 AMP D-Sub Connectors Image 3

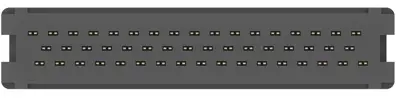

1658606-1 AMP D-Sub Connectors Image 4

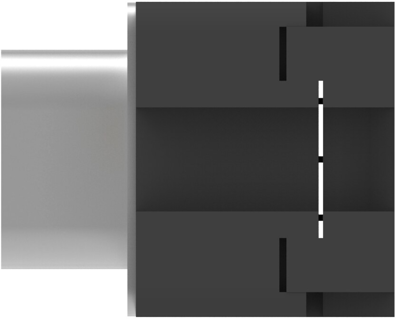

1658606-1 AMP D-Sub Connectors Image 5
Image may differ
Unit Price (€ / pc.)
34.0697 € *
Available: 19 pcs.
Available in 5 Days: 1,475 pcs.
Leadtime: 4 Weeks **
Total Price:
34.07 € *
Price list
Quantity
Price per unit*
1 pcs.
34.0697 €
5 pcs.
32.0110 €
15 pcs.
30.7853 €
50 pcs.
29.4287 €
150 pcs.
28.1911 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sub-D connector with insulation displacement terminals, type TE Connectivity/AMP HDF 20.

Insulator made of black polyamide, flame retardant to UL 94 V-0; Optional: with or without metal collar and with 3.4 mm flange for retrofitting UNC 4-40 screw locks. Contacts: tin bronze, nickel-plated and selective gold-plated. Grid: 1.27 mm. Cable exit: optional 90 or 180 degrees.

Female connectors with metal collar and thread insert UNC 4-40, type 0-16586.

Type: 0-1658606-1, for 50-pole cable

Technical specifications
Version Buchsenleiste
Attachment (rear panel) Durchgangsloch
Additional parts bestückt
Contact connection Schneidklemmanschluss
Assembly gerade
Pole image Standard
Pin number 50-polig
Grid 2.77 mm
Type of locking Gewindeeinsatz 4-40 UNC
Logistics
Country of origin GB
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
