1658609-3 | AMP
D-Sub socket, 15 pole, standard, equipped, straight, IDC connection, 1658609-3
Unit Price (€ / pc.)
15.5890 € *
Available: 0 pcs.
Available in 5 Days: 2,004 pcs.
Leadtime: 18 Weeks **
Total Price:
623.56 € *
Price list
Quantity
Price per unit*
40 pcs.
15.5890 €
80 pcs.
15.3153 €
*incl. VAT plus shipping costs
**Subject to prior sale

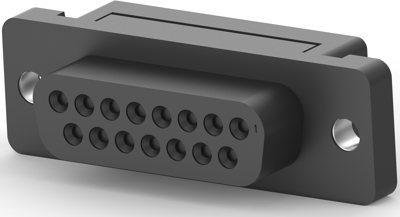

D-Sub socket, 1658609-3, AMP
Subminiature D Connectos HDF-20 for flat ribbon cable.
Features
- Fluted cover provides positive alignment of cable prior to termination
- Patented insulation displacement contact latches into the connector cover
- Contact base material: Phosphor-Bronze
- Shell material: Steel, tin-plated
Applications
- Industrial machinery
- Medical instrumentation
- Computer peripheral equipment
- RAID storage arrays
- On-machine industrial communications
Technical specifications
| Version | Buchsenleiste | |
| Attachment (rear panel) | Durchgangsloch | |
| Additional parts | bestückt | |
| Contact connection | Schneidklemmanschluss | |
| Assembly | gerade | |
| Pole image | Standard | |
| Pin number | 15-polig | |
| Grid | 2.77 mm | |
| Type of locking | Gewindeeinsatz 4-40 UNC |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
