1658674-1 | AMP
D-Sub plug, 78 pole, high density, unequipped, straight, crimp connection, 1658674-1
Unit Price (€ / pc.)
5.8667 € *
Available: 0 pcs.
Available in 5 Days: 9,052 pcs.
Leadtime: 11 Weeks **
Total Price:
5.87 € *
Price list
Quantity
Price per unit*
20 pcs.
5.8667 €
80 pcs.
5.5335 €
*incl. VAT plus shipping costs
**Subject to prior sale
High-density Sub-D connector series HDP 22, bare, type TE Connectivity/AMP 0-0748../0-1658.
For applications requiring maximum contact density. Electrical and mechanical properties to MiL-C-24308; Insulator: glass fiber-reinforced polyamide GV, black, self-extinguishing to UL 94-0. Continuous current, depending upon the conductor cross-section (0.032 to 0.41 mm²): 1.5 to 5.0 A. Corresponding male or female contacts are described below (available on separate order).
For male contacts, type 0-0748../0-1658.

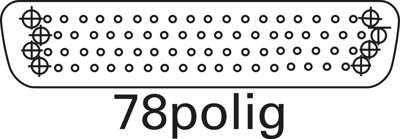

Technical attributes (type, number of poles, dimensions): 0-1658674-1, 78-pole, A 66.9, B 61.1, C 15.3 mm
Technical specifications
| Version | pin header | |
| Attachment (rear panel) | through hole | |
| Additional parts | unequipped | |
| Contact connection | crimp connection | |
| Assembly | straight | |
| Pole image | high density | |
| Pin number | 78 pole | |
| Grid | 2.41 mm | |
| Type of locking | through hole |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
