205204-4 | AMP

D-Sub plug, 9 pole, standard, unequipped, straight, crimp connection, 205204-4

Order No.: 55F4033
EAN: 4099889806571
MPN:
205204-4
0-0205204-4
Series: AMPLIMITE

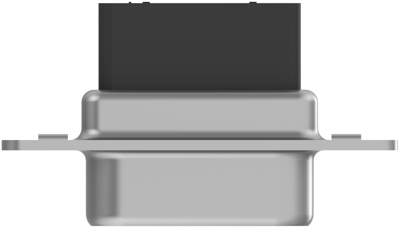

205204-4 AMP D-Sub Connectors Image 1

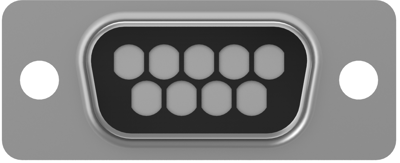

205204-4 AMP D-Sub Connectors Image 2

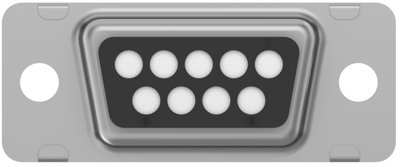

205204-4 AMP D-Sub Connectors Image 3

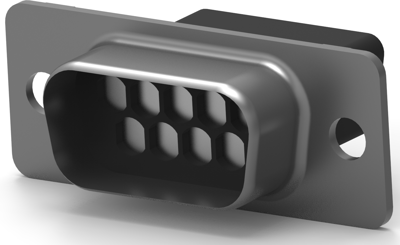

205204-4 AMP D-Sub Connectors Image 4
Image may differ
Unit Price (€ / pc.)
2.0230 € *
Available: 28 pcs.
Available in 5 Days: 673 pcs.
Leadtime: 4 Weeks **
Total Price:
2.02 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0230 €
10 pcs.
1.8921 €
50 pcs.
1.7374 €
100 pcs.
1.5827 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male Header, 205204-4, AMP

Shell Type: Full Metal Shell, Connector and Housing Type: Plug, Connector System: Cable-to-Cable, D-Sub Shell Size: 1, Sealable: No, Number of Positions: 9, Shell Material: Steel, D-Sub Contact Size: 20, Mating Retention: With, Mating Retention Type: Mounting Holes, Centerline (Pitch): 2.74 mm, Operating Temperature Range: -55 to 105 °C, For Use With: Crimp Snap-in, Shielded: Yes, Circuit Application: Signal, UL Flammability Rating: UL 94V-0.

Technical Data

  • Assembly: Cable connection
  • Pin number: 9-pole
  • Pole image: Standard
Technical specifications
Version Stiftleiste
Attachment (rear panel) Durchgangsloch
Additional parts unbestückt
Contact connection Crimpanschluss
Assembly gerade
Pole image Standard
Pin number 9-polig
Grid 2.74 mm
Type of locking Durchgangsloch
Logistics
Country of origin TW
Customs tariff number 85472000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
