3-338313-2 | AMP

D-Sub socket, 9 pole, standard, equipped, straight, solder pin, 3-338313-2

Order No.: 55F4812
EAN: 4099889807073
MPN:
3-338313-2
3-0338313-2
Series: AMPLIMITE
AMP

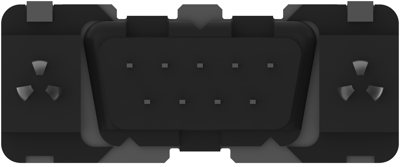

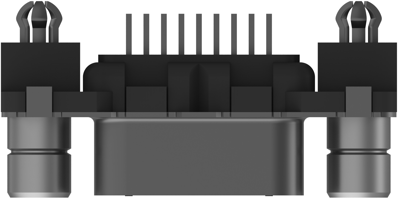

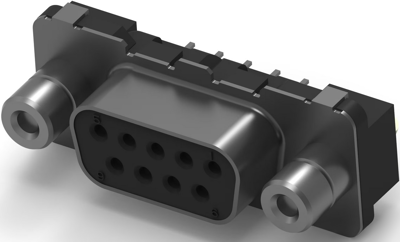

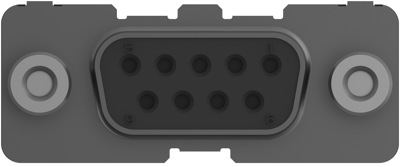

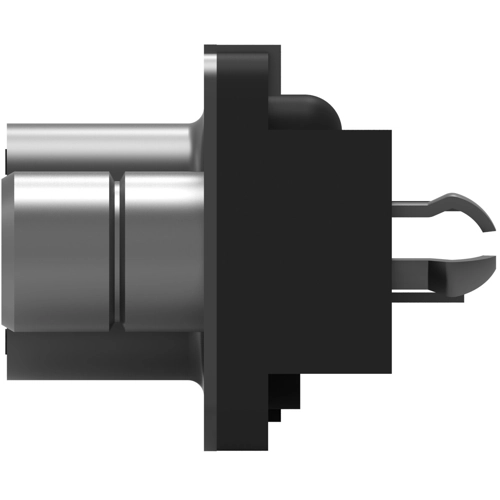

3-338313-2 AMP D-Sub Connectors Image 1
3-338313-2 AMP D-Sub Connectors Image 2
3-338313-2 AMP D-Sub Connectors Image 3
3-338313-2 AMP D-Sub Connectors Image 4
3-338313-2 AMP D-Sub Connectors Image 5
Image may differ
Unit Price (€ / pc.)
5.3788 € *
Available: 849 pcs.
Leadtime: On Request **
Total Price:
5.38 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3788 €
10 pcs.
5.1051 €
50 pcs.
4.8552 €
100 pcs.
4.5101 €
*incl. VAT plus shipping costs
**Subject to prior sale

D-Sub socket, 3-338313-2, AMP

PCB D-Sub Connector, Receptacle, Cable-to-Board, 9 Position, 2.74 mm Centerline, 2 Row, Size 1, Round, Standard profile, Vertical.

Features

  • Unsealable
  • Unshielded
  • Preloaded: Yes
  • Performance level: 2

Applications

  • For signal applications
Technical specifications
Performance level 2
Version socket header
Attachment (rear panel) PCB locking
Additional parts equipped
Contact connection solder pin
Assembly straight
Pole image standard
Pin number 9 pole
Grid 2.74 mm
Type of locking threaded bolts 4-40 UNC
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
