5-338309-2 | AMP
D-Sub plug, 9 pole, standard, equipped, straight, solder pin, 5-338309-2
Unit Price (€ / pc.)
6.4974 € *
Available: 8 pcs.
Leadtime: 15 Weeks **
Total Price:
6.50 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4974 €
10 pcs.
5.9738 €
50 pcs.
5.4383 €
100 pcs.
4.9028 €
*incl. VAT plus shipping costs
**Subject to prior sale

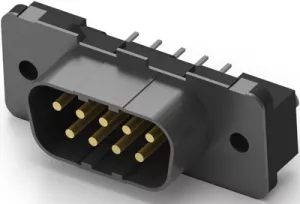

D-Sub plug, 5-338309-2, AMP
PCB D-Sub Connector, Plug, Cable-to-Board, 9 Position, 2.74 mm Centerline, 2 Row, Size 1, Round, Standard profile, Vertical.
Features
- Unsealable
- Unshielded
- Preloaded: Yes
- Performance level: 2
Applications
- For signal applications
Technical specifications
| Anforderungsstufe | 2 | |
| Ausführung | Stiftleiste | |
| Befestigung (Rückseitig) | Durchgangsloch | |
| Bestückung | bestückt | |
| Kontaktanschluss | Einlötstift | |
| Montage | gerade | |
| Polbild | Standard | |
| Polzahl | 9-polig | |
| Rastermaß | 2.74 mm | |
| Verriegelung | Gewindeeinsatz 4-40 UNC |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
