5-338315-2 | AMP

D-Sub socket, 25 pole, standard, equipped, straight, solder pin, 5-338315-2

Order No.: 55F4822
EAN: 4099889807127
MPN:
5-338315-2
5-0338315-2
Series: AMPLIMITE
AMP

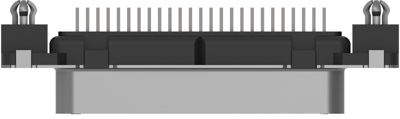

5-338315-2 AMP D-Sub Connectors Image 1

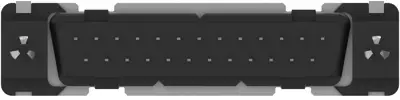

5-338315-2 AMP D-Sub Connectors Image 2

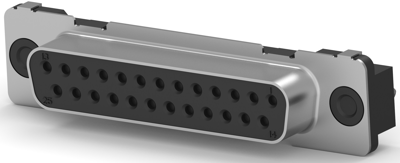

5-338315-2 AMP D-Sub Connectors Image 3

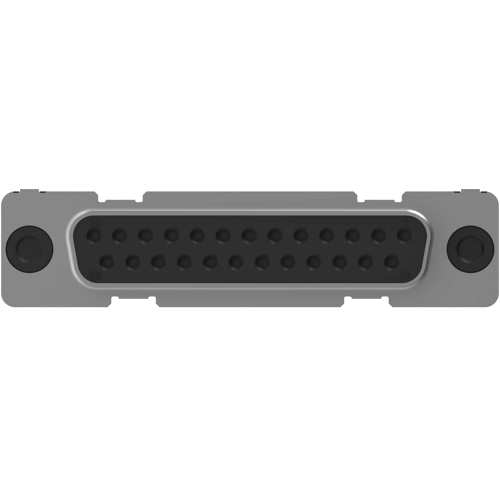

5-338315-2 AMP D-Sub Connectors Image 4
5-338315-2 AMP D-Sub Connectors Image 5
Image may differ
Unit Price (€ / pc.)
14.0658 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
14.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
14.0658 €

Sub-D connector, male contacts, AMPLIMITE HDP-20, type TE Connectivity/AMP ..-338.

For PCB assembly with 3.2 mm solder pins for 0.7 mm hole diameter, mounting height only 11.7 mm or 12.7 mm; Metal hood: steel, tinned on nickel primer. Insulator: polyester, glass fiber-reinforced. Housing: black. Contacts: CuZn 0.8 µm Au on 1.3 µm Ni primer. Performance class 2 to DIN 41652. Solder contacts min. 2.5 µm Sn on 1.3 µm Ni primer. Fastening: threaded bushing UNC 4-40, threaded bolt UNC 4-40, or 3.1 mm through hole.

Receptacle headers, type ..-338.

Technical attributes (type, number of poles, dimensions, fastening, with/without integrated clips): 5-338315-2, 25-pole, B 47.0, C 53.1, F 40.7 mm, through hole, without clips

Technical specifications
Performance level 2
Version socket header
Attachment (rear panel) through hole
Additional parts equipped
Contact connection solder pin
Assembly straight
Pole image standard
Pin number 25 pole
Grid 2.74 mm
Type of locking threaded insert 4-40 UNC
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
