5747250-4 | AMP

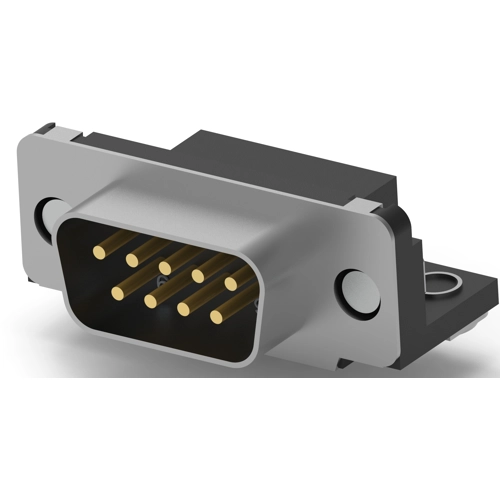

D-Sub plug, 9 pole, standard, equipped, angled, solder pin, 5747250-4
Unit Price (€ / pc.)
5.7001 € *
Available: 0 pcs.
Available in 5 Days: 33 pcs.
Leadtime: 7 Weeks **
Total Price:
5.70 € *
Price list
Quantity
Price per unit*
20 pcs.
5.7001 €
95 pcs.
4.7243 €
*incl. VAT plus shipping costs
**Subject to prior sale
D-Sub plug, 5747250-4, AMP
HD-20 Full Metal-Shell Right-angle posted connector.
Features
- Flame retardant thermoplastic housing material
- Integral boardlock feature secures connectors to PC board prior to soldering
- Contact base material: Phosphor-Bronze
- Shell material: Steel, tin-plated
Technical specifications
| Version | pin header | |
| Attachment (rear panel) | through hole | |
| Additional parts | equipped | |
| Contact connection | solder pin | |
| Assembly | angled | |
| Pole image | standard | |
| Pin number | 9 pole | |
| Grid | 2.74 mm | |
| Type of locking | threaded insert 4-40 UNC |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
