5747846-3 | AMP

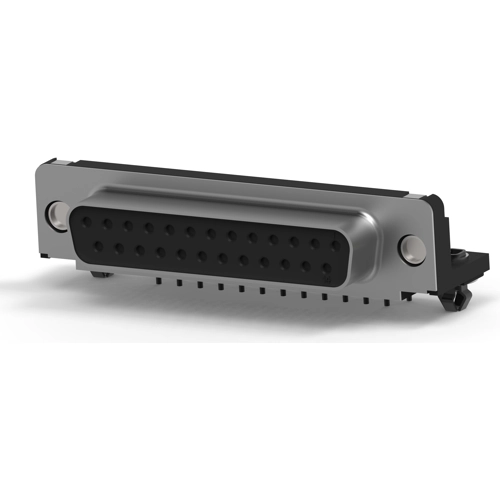

D-Sub socket, 25 pole, standard, equipped, angled, solder pin, 5747846-3

Order No.: 36P8475
EAN: 4099889786330
MPN:
5747846-3
Series: AMPLIMITE
5747846-3 AMP D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
5.8786 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
3,821.09 € *
*incl. VAT plus shipping costs
**Subject to prior sale
650 pcs.
5.8786 €

D-Sub socket, 5747846-3, AMP

HD-20 Front Metal-Shell Right-angle posted connector.

Features

  • Flame retardant thermoplastic housing material
  • Integral boardlock feature secures connectors to PC board prior to soldering
  • Contact base material: Brass
  • Shell material: Steel, tin-plated
Technical specifications
Version Buchsenleiste
Attachment (rear panel) Durchgangsloch
Additional parts bestückt
Contact connection Einlötstift
Assembly abgewinkelt
Pole image Standard
Pin number 25-polig
Grid 2.77 mm
Type of locking Gewindeeinsatz 4-40 UNC
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
