5748826-1 | AMP

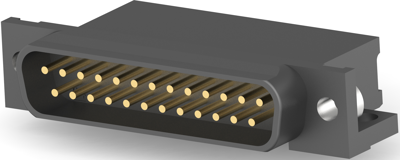

D-Sub plug, 25 pole, standard, equipped, angled, solder pin, 5748826-1
Unit Price (€ / pc.)
18.8972 € *
Available: 0 pcs.
Available in 5 Days: 268 pcs.
Leadtime: 20 Weeks **
Total Price:
18.90 € *
Price list
Quantity
Price per unit*
1 pcs.
18.8972 €
10 pcs.
17.3859 €
25 pcs.
15.6366 €
50 pcs.
14.0777 €
*incl. VAT plus shipping costs
**Subject to prior sale
D-Sub plug, 5748826-1, AMP
HD-20 All-Plastic right-angle posted connector.
Features
- Flame retardant thermoplastic housing material
- Low cost front metal shell design
- Preloaded: Yes
- Insert flammability rating: UL 94V-0
Applications
- For signal applications
Technical specifications
| Ausführung | Stiftleiste | |
| Befestigung (Rückseitig) | Durchgangsloch | |
| Bestückung | bestückt | |
| Kontaktanschluss | Einlötstift | |
| Montage | abgewinkelt | |
| Polbild | Standard | |
| Polzahl | 25-polig | |
| Rastermaß | 2.74 mm | |
| Verriegelung | Gewindeeinsatz |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
