5749111-1 | AMP

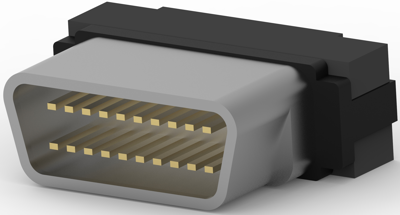

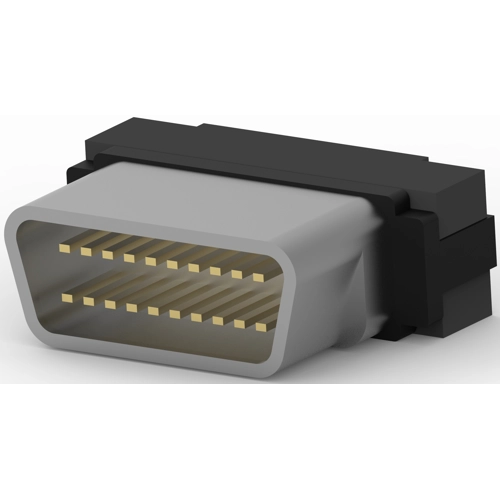

D-Sub plug, 20 pole, standard, equipped, straight, IDC connection, 5749111-1

Order No.: 36P5799
EAN: 4099889784145
MPN:
5749111-1
Series: AMPLIMITE
5749111-1 AMP D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
9.9960 € *
Available: 0 pcs.
Available in 5 Days: 603 pcs.
Leadtime: 11 Weeks **
Total Price:
10.00 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9960 €
10 pcs.
9.1868 €
50 pcs.
8.2705 €
100 pcs.
7.4494 €
*incl. VAT plus shipping costs
**Subject to prior sale

D-Sub plug, 5749111-1, AMP

IDC D-Sub Connector, Plug, 30 – 28 AWG solid wire size, 0.05 – 0.1 mm² solid wire size.

Features

  • Excellent EMI/RFI protection
  • Protect your system with shields that mate before contacts, with ground mating first and breaking last
  • Board connectors compatible with standard thru-hole flow solder and surface-mount reflow solder processes
  • Insert flammability rating UL 94V-0

Applications

  • Industrial machinery
  • Medical instrumentation
  • Computer peripheral equipment
  • RAID storage arrays
  • On-machine industrial communications
Technical specifications
Ausführung Stiftleiste
Bestückung bestückt
Kontaktanschluss Schneidklemmanschluss
Montage gerade
Polbild Standard
Polzahl 20-polig
Rastermaß 1.27 mm
Verriegelung Durchgangsloch
Logistics
Ursprungsland CZ
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
