6-5173280-2 | AMP

D-Sub connector, 40 pole, standard, straight, solder pin, 6-5173280-2

Order No.: 72P0755
EAN: 4099891359799
MPN:
6-5173280-2
Series: AMPMODU

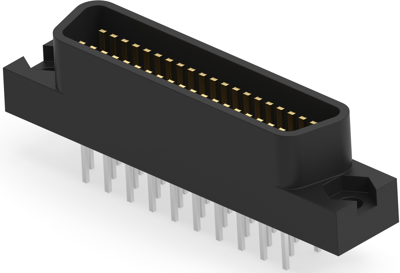

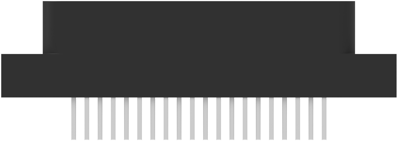

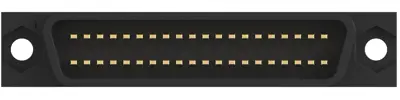

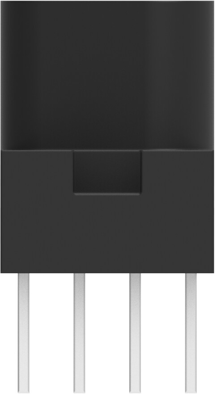

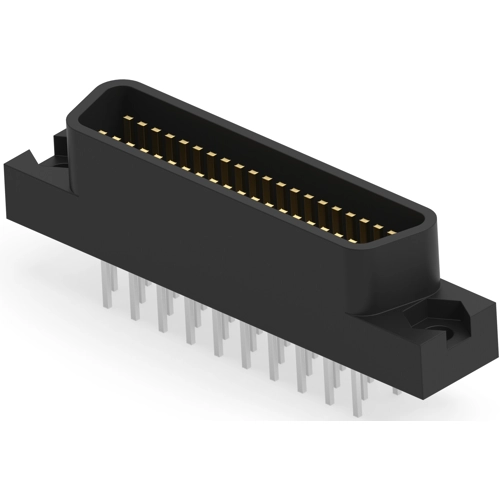

6-5173280-2 AMP D-Sub Connectors Image 1

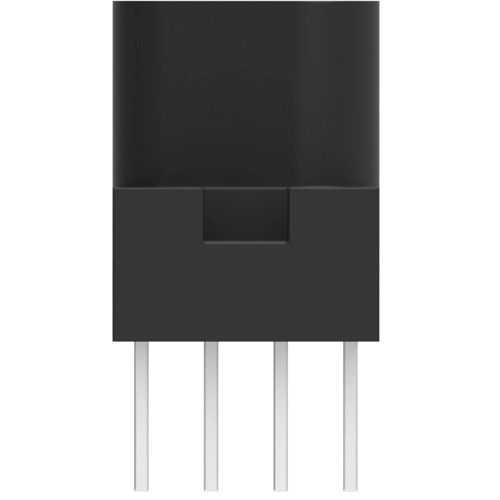

6-5173280-2 AMP D-Sub Connectors Image 2

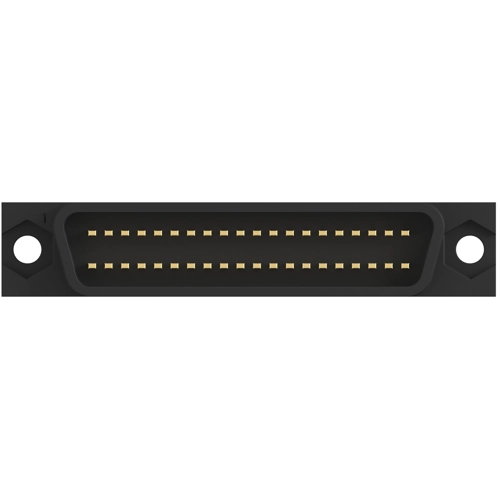

6-5173280-2 AMP D-Sub Connectors Image 3

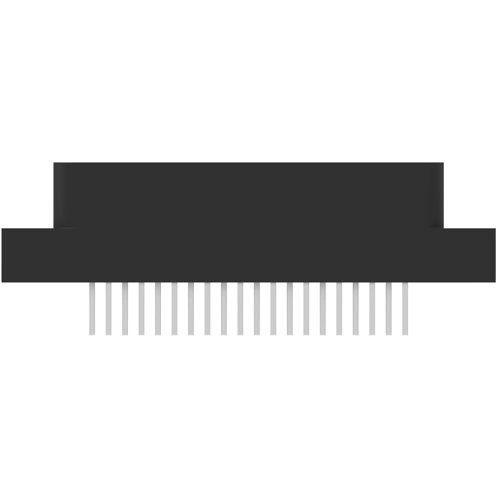

6-5173280-2 AMP D-Sub Connectors Image 4
Image may differ
Unit Price (€ / pc.)
10.3649 € *
Available: 0 pcs.
Available in 5 Days: 1,388 pcs.
Leadtime: 19 Weeks **
Total Price:
10.36 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3649 €
10 pcs.
9.5319 €
50 pcs.
8.5799 €
100 pcs.
7.7231 €
*incl. VAT plus shipping costs
**Subject to prior sale

D-Sub connector, 6-5173280-2, AMP

PCB D-Sub connector, Plug, Cable-to-Board, 40 Position, 1.27 mm Centerline, 2 Row, Rectangular, Standard profile.

Technical specifications
Ausführung Stiftleiste
Befestigung (Rückseitig) Durchgangsloch
Kontaktanschluss Einlötstift
Montage gerade
Polbild Standard
Polzahl 40-polig
Rastermaß 1.27 mm
Logistics
Ursprungsland JP
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
