6-5173280-4 | AMP

D-Sub connector, 60 pole, standard, straight, solder pin, 6-5173280-4

Order No.: 72P0756
EAN: 4099891360047
MPN:
6-5173280-4
Series: AMPMODU
AMP

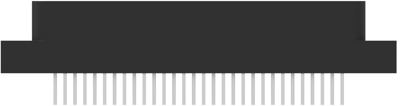

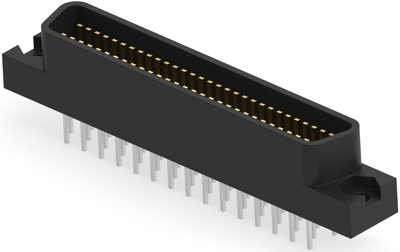

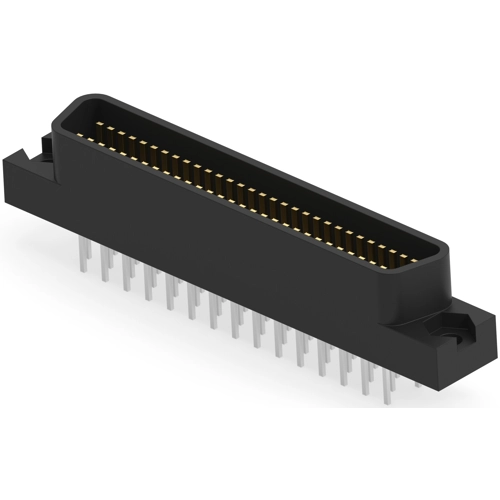

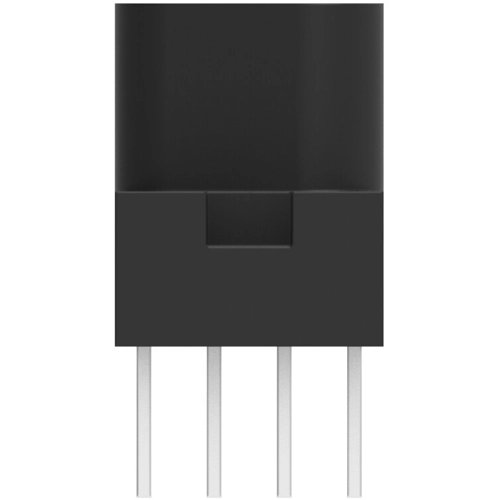

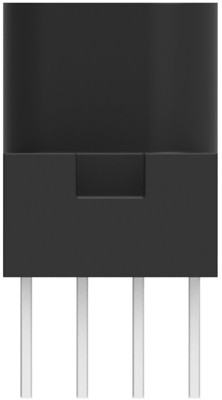

6-5173280-4 AMP D-Sub Connectors Image 1
6-5173280-4 AMP D-Sub Connectors Image 2

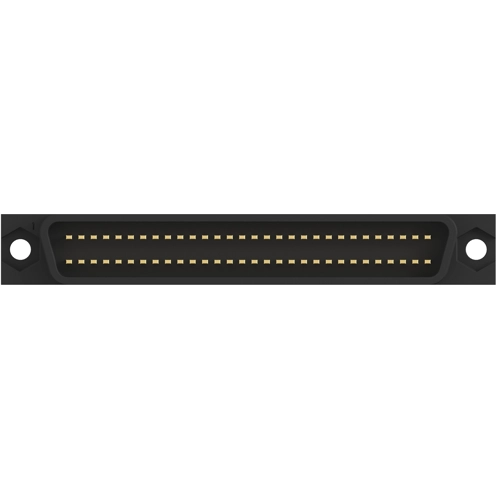

6-5173280-4 AMP D-Sub Connectors Image 3

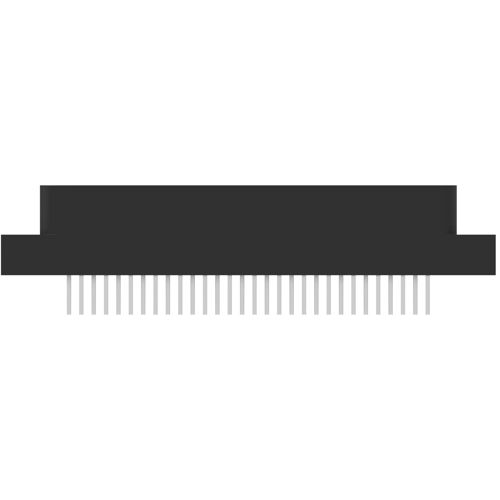

6-5173280-4 AMP D-Sub Connectors Image 4
Image may differ
Print
Key Specification:
Pin number 60 pole
Version pin header
Contact connection solder pin
Grid 1.27 mm

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
10.3887 € *
Available: 0 pcs.
Available in 5 Days: 559 pcs.
Leadtime: 19 Weeks **
Add to Cart
Total Price:
10.39 € *
Price list
Quantity
Price per unit*
10 pcs.
10.3887 €
45 pcs.
9.8056 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance

D-Sub connector, 6-5173280-4, AMP

PCB D-Sub connector, Plug, Cable-to-Board, 60 Position, 1.27 mm Centerline, 2 Row, Rectangular, Standard profile.
Technical specifications
Version pin header
Attachment (rear panel) through hole
Contact connection solder pin
Assembly straight
Pole image standard
Pin number 60 pole
Grid 1.27 mm
Show similar products 0
Logistics
Country of origin JP
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
