1-2198617-5 | AMP

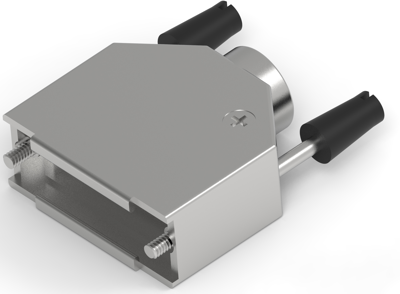

D-Sub connector housing, size: 2 (DA), straight 180°, cable Ø 4 to 13 mm, ABS, silver, 1-2198617-5
Unit Price (€ / pc.)
8.1634 € *
Available: 0 pcs.
Leadtime: On Request **
D-Sub Backshells and Clamps, 1-2198617-5, AMP
Grommets: With, D-Shaped Connector Accessories: Backshell, Number of Positions: 15, Shield Plating Material: Nickel, Cable Clamp Type: Two-Piece RFI/EMI Shield, Cable Exit Angle: 180° (In-Line), Screw & Hole Thread Size: 4-40, Cable Insulation Diameter Range: 4 – 13 mm, Compatible With Connector Shell Size: 2, Shielded: Yes, Cover Flammability Rating: UL 94V-0, Packaging Method: Bag
Technical specifications
| Colour | silver | |
| Shell size | 2 (DA) | |
| Shell Material | ABS | |
| Cable Outlet | straight 180° | |
| Cable diameter | 4 to 13 mm | |
| Type of locking | locking screw 4-40 UNC |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
