1534805-1 | AMP
D-Sub connector housing, size: 1 (DE), angled 45°, cable Ø 4.8 to 9 mm, steel, silver, 1534805-1
Unit Price (€ / pc.)
8.4371 € *
Available: 954 pcs.
Leadtime: 9 Weeks **
Total Price:
8.44 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4371 €
10 pcs.
7.8302 €
50 pcs.
7.2114 €
100 pcs.
6.5688 €
500 pcs.
5.9024 €
*incl. VAT plus shipping costs
**Subject to prior sale
Metal caps with 2x 45° cable exits for sub-D connectors, type TE Connectivity/AMP 0-153.

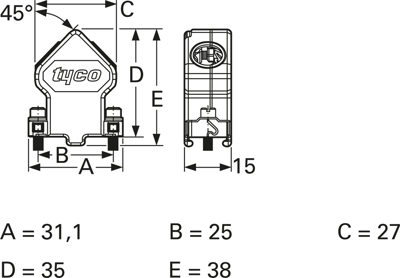

For realization of Y-applications, made of steel, zinc-coated, comprising twin shell segments, cable clamp, blind plate, screws and mounting bolts with thread 4-40 UNC; Recommended cable diameter with normal/reversed cable clamp: 6.6 to 11 mm (9-pole = up to 9.0 mm)/4.8 to 6.6 mm. Dimensions: 9-pole/A 31.1, B 25, C 27, D 35, E 38 mm; 15-pole/A 39.5, B 33.3, C 33, D 39, E 42 mm; 25-pole/A 53.3, B 47, C 41.7, D 39, E 42 mm, 37-pole/A 69.8, B 63.5, C 58.2, D 39, E 42 mm.
Technical attributes (type, connector type): 0-1534805-1, for 9-pole cable
Technical specifications
| Farbe | silber | |
| Gehäusegröße | 1 (DE) | |
| Gehäusematerial | Stahl | |
| Kabelausgang | abgewinkelt 45° | |
| Kabeldurchmesser | 4,8 bis 9 mm | |
| Verriegelung | Verriegelungsschraube 4-40 UNC |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
