1534811-1 | AMP

D-Sub connector housing, size: 4 (DC), angled 45°, cable Ø 4.8 to 11 mm, steel, silver, 1534811-1

Order No.: 55F5426
EAN: 4099889813494
MPN:
1534811-1
0-1534811-1
Series: AMPLIMITE
AMP
1534811-1 AMP D-Sub Housings
Image may differ
Unit Price (€ / pc.)
18.4926 € *
Available: 31 pcs.
Leadtime: 26 Weeks **
Total Price:
18.49 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4926 €
10 pcs.
17.2074 €
50 pcs.
15.8151 €
100 pcs.
14.3990 €
*incl. VAT plus shipping costs
**Subject to prior sale

Metal caps with 2x 45° cable exits for sub-D connectors, type TE Connectivity/AMP 0-153.

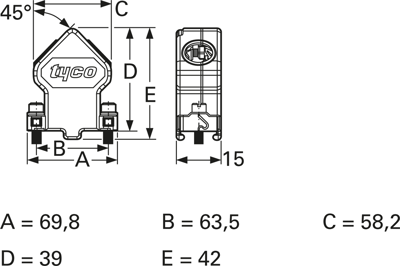

For realization of Y-applications, made of steel, zinc-coated, comprising twin shell segments, cable clamp, blind plate, screws and mounting bolts with thread 4-40 UNC; Recommended cable diameter with normal/reversed cable clamp: 6.6 to 11 mm (9-pole = up to 9.0 mm)/4.8 to 6.6 mm. Dimensions: 9-pole/A 31.1, B 25, C 27, D 35, E 38 mm; 15-pole/A 39.5, B 33.3, C 33, D 39, E 42 mm; 25-pole/A 53.3, B 47, C 41.7, D 39, E 42 mm, 37-pole/A 69.8, B 63.5, C 58.2, D 39, E 42 mm.

Technical attributes (type, connector type): 0-1534811-1, for 37-pole cable

Technical specifications
Colour silver
Shell size 4 (DC)
Shell Material steel
Cable Outlet angled 45°
Cable diameter 4.8 to 11 mm
Type of locking locking screw 4-40 UNC
Logistics
Country of origin MX
Customs tariff number 85389091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
