2198617-9 | AMP

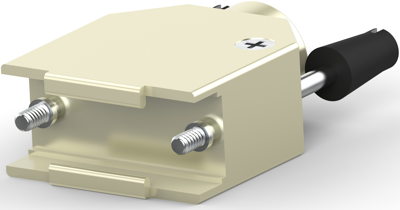

D-Sub connector housing, size: 1 (DE), straight 180°, cable Ø 4 to 13 mm, ABS, silver, 2198617-9
Unit Price (€ / pc.)
11.5311 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
11.53 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5311 €
10 pcs.
10.6029 €
50 pcs.
9.5438 €
100 pcs.
8.5918 €
*incl. VAT plus shipping costs
**Subject to prior sale
D-Sub Backshells and Clamps, 2198617-9, AMP
Grommets: With, D-Shaped Connector Accessories: Backshell, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 9, Shield Plating Material: Nickel, Cable Clamp Type: Two-Piece RFI/EMI Shield, Cable Exit Angle: 180° (In-Line), Screw & Hole Thread Size: 4-40, Cable Insulation Diameter Range: 4 – 13 mm, Compatible With Connector Shell Size: 1, Shielded: Yes, Cover Flammability Rating: UL 94V-2, Packaging Method: Bag
Technical specifications
| Farbe | silber | |
| Gehäusegröße | 1 (DE) | |
| Gehäusematerial | ABS | |
| Kabelausgang | gerade 180° | |
| Kabeldurchmesser | 4 bis 13 mm | |
| Verriegelung | Verriegelungsschraube 4-40 UNC |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
