5-1478762-1 | AMP

D-Sub connector housing, size: 1 (DE), straight 180°, cable Ø 4 to 13 mm, zinc die casting, silver, 5-1478762-1

Order No.: 36P6301
EAN: 4099889810646
MPN:
5-1478762-1
Series: AMPLIMITE

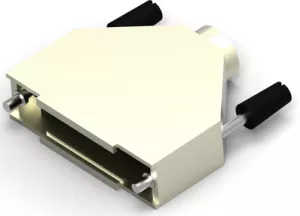

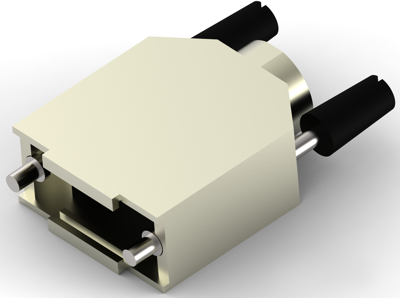

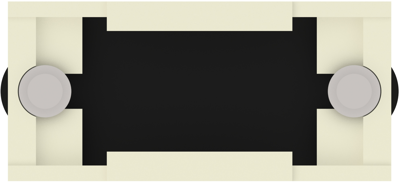

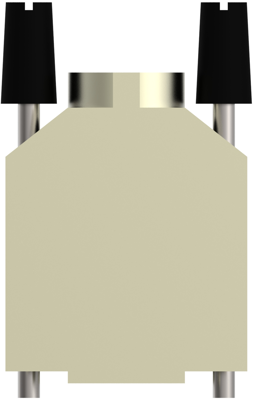

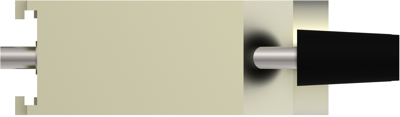

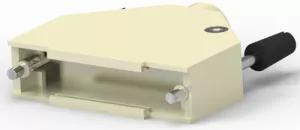

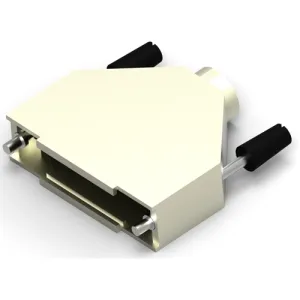

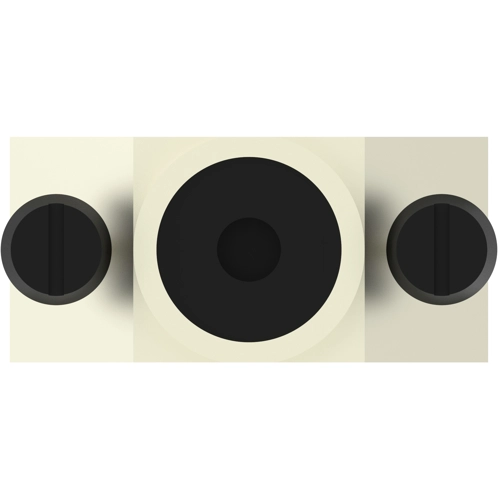

5-1478762-1 AMP D-Sub Housings Image 1
5-1478762-1 AMP D-Sub Housings Image 2
5-1478762-1 AMP D-Sub Housings Image 3
5-1478762-1 AMP D-Sub Housings Image 4
5-1478762-1 AMP D-Sub Housings Image 5
Image may differ
Unit Price (€ / pc.)
7.5803 € *
Available: 41 pcs.
Available in 5 Days: 1,696 pcs.
Leadtime: 4 Weeks **
Total Price:
7.58 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5803 €
10 pcs.
6.6521 €
50 pcs.
6.1999 €
150 pcs.
5.9619 €
*incl. VAT plus shipping costs
**Subject to prior sale

D-Sub Housing, 5-1478762-1, AMP

D-Shaped Connector Accessories: Backshell Kit, Connector System: Cable-to-Cable,Cable-to-Panel, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 9, Cable Clamp Type: Two-Piece RFI/EMI Shield, Ferrule Type: Split-Ring, Cable Exit Angle: 180, Connector Mounting Type: Cable Mount (Free-Hanging),Panel Mount, Operating Temperature Range: -55 – 105 °C, Compatible With Connector Shell Size: 1, Shielded: Yes

Technical Data

  • Colour: silver
  • Type of locking: Locking Screw 4-40 UNC
  • Shell Material: Metal
  • Cable diameter: 4-13 mm
  • Shell size: 1 (DE)
Technical specifications
Farbe silber
Gehäusegröße 1 (DE)
Gehäusematerial Zinkdruckguss
Kabelausgang gerade 180°
Kabeldurchmesser 4 bis 13 mm
Verriegelung Verriegelungsschraube 4-40 UNC
Logistics
Ursprungsland NL
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
