5745172-2 | AMP

D-Sub connector housing, size: 2 (DA), straight 180°, cable Ø 7.62 mm, zinc die casting, silver, 5745172-2

Order No.: 55F5353
EAN: 4099889813258
MPN:
5745172-2
0-5745172-2
Series: AMPLIMITE
AMP
5745172-2 AMP D-Sub Housings
Image may differ
Unit Price (€ / pc.)
13.1733 € *
Available: 43 pcs.
Leadtime: On Request **
Total Price:
13.17 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1733 €
10 pcs.
11.5906 €
50 pcs.
10.7814 €
150 pcs.
10.3411 €
*incl. VAT plus shipping costs
**Subject to prior sale

Caps for sub-D connectors series HDP 22, type TE Connectivity/AMP HD 20 uni.

Made of black polypropylene. For 90° and 180° cable exit, corresponding connectors with male and female contacts.

Metal caps for sub-D connectors HDP 22, type TE Connectivity/AMP 0-574.

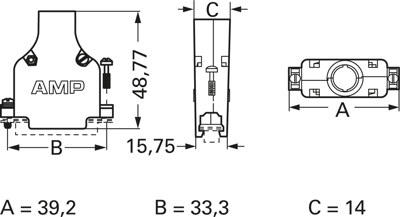

Made of zinc. Chromalized colorless. Especially suitable for shielded round cable. With twin-shell segment construction for simple mounting. Complete with hex nut, filister head screw and lock washer; Dimensions in mm: 15-pole = A 30.9, B 25, C 10.4; 26-pole = A 39.2, B 33.3, C 14; 44-pole = A 53.1, B 47, C 16.8; 62-pole = A 69.5, B 63.5, C 20.3. Cable diameter (Cd).

Technical attributes (type, number of poles, cable diameter (Cd)): 0-5745172-2, for 26 poles, Cd 7.62 mm

Technical specifications
Colour silver
Shell size 2 (DA)
Shell Material zinc die casting
Cable Outlet straight 180°
Cable diameter 7.62 mm
Type of locking locking screw 4-40 UNC
Logistics
Country of origin US
Customs tariff number 85389091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
