5745175-4 | AMP
D-Sub connector housing, size: 5 (DD), straight 180°, cable Ø 13.34 mm, zinc die casting, silver, 5745175-4
Unit Price (€ / pc.)
20.3490 € *
Available: 0 pcs.
Leadtime: 28 Weeks **
Total Price:
20.35 € *
Price list
Quantity
Price per unit*
1 pcs.
20.3490 €
10 pcs.
18.7306 €
25 pcs.
16.8504 €
50 pcs.
15.1725 €
*incl. VAT plus shipping costs
**Subject to prior sale
Metal caps for sub-D connectors HDP 20, type TE Connectivity/AMP HD 20 RFI/EMI.

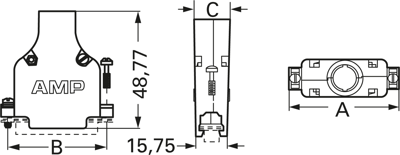

Made of zinc, chromalized in clear color. Suited especially for shielded round cables. Corresponding series HDP 20 connectors. Consists of two shell segments with two hex nuts and 4 cap screws; Thread: 4-40 UNC-2. Dimensions in mm: 9-pole: A 30.9, B 25, C 10.4. 15-pole: A 39.2, B 33.3, C 14. 25-pole: A 53.1, B 47, C 16.8. 37-pole: A 69.5, B 63.5, C 20.3.
Technical attributes (type, connector type, cable diameter (Cd)): 0-5745175-4, for 50 poles, Cd 13.7 mm
Technical specifications
| Farbe | silber | |
| Gehäusegröße | 5 (DD) | |
| Gehäusematerial | Zinkdruckguss | |
| Kabelausgang | gerade 180° | |
| Kabeldurchmesser | 13,34 mm | |
| Verriegelung | Verriegelungsschraube 4-40 UNC |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
