5748676-1 | AMP
D-Sub connector housing, size: 1 (DE), straight 180°, cable Ø 4.7 to 8.13 mm, zinc die casting, silver, 5748676-1
Unit Price (€ / pc.)
10.4244 € *
Available: 131 pcs.
Leadtime: 43 Weeks **
Total Price:
10.42 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4244 €
10 pcs.
9.1630 €
100 pcs.
8.0206 €
*incl. VAT plus shipping costs
**Subject to prior sale
Metal caps for sub-D connectors HDP 20, type TE Connectivity/AMP HD 20 RFI/EMI.

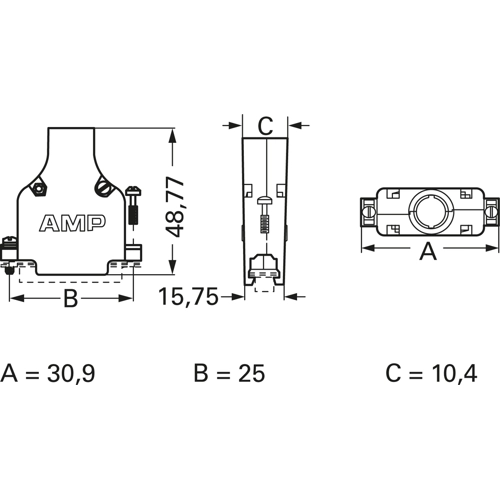

Made of zinc, chromalized in clear color. Suited especially for shielded round cables. Corresponding series HDP 20 connectors. Consists of two shell segments with two hex nuts and 4 cap screws; Thread: 4-40 UNC-2. Dimensions in mm: 9-pole: A 30.9, B 25, C 10.4. 15-pole: A 39.2, B 33.3, C 14. 25-pole: A 53.1, B 47, C 16.8. 37-pole: A 69.5, B 63.5, C 20.3.
With rubber bushing, type 0-5748.
Supplied with rubber bushing set for general adaptation of cable diameters.
Technical attributes (type, for connectors, for cable diameters (Cd) from/to): 0-5748676-1, 9-pole, Cd 4.7/8.1 mm
Technical specifications
| Farbe | silber | |
| Gehäusegröße | 1 (DE) | |
| Gehäusematerial | Zinkdruckguss | |
| Kabelausgang | gerade 180° | |
| Kabeldurchmesser | 4,7 bis 8,13 mm | |
| Verriegelung | Verriegelungsschraube 4-40 UNC |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
