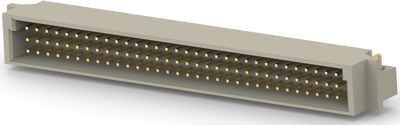

Eurocard Connector, 1-1393644-6, AMP
Connector & Housing Type: Plug, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Male connector, DIN Size: Standard, Position Locations Loaded: Every even pitch, Number of Positions: 96, Number of Rows: 3, PCB Mount Orientation: Right Angle, Number of Columns: 32, Contact Base Material: Phosphor Bronze, Contact Current Rating (Max): 1.5 A, Termination Method to Male connector: Through Hole - Solder, Termination Post & Tail Length: 3 mm, PCB Mount Retention Type: Mounting Hole, Connector Mounting Type: Board Mount, Housing Material: Polyester - GF, Centerline (Pitch): 2.54 mm, PCB Thickness (Recommended): 1.6 mm, Row-to-Row Spacing: 2.54 mm, Operating Temperature Range: -55 – 105 °C, Shielded: No, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Tray
