1-1393726-0 | AMP

Male connector, 30 pole, solder cup, straight, silver-plated, 1-1393726-0

Order No.: 55F888
EAN: 4099891023584
MPN:
1-1393726-0
C42334-A44-A5
1-1393726-0 AMP DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
62.118 € *
Available: 0 pcs.
Available in 5 Days: 221 pcs.
Leadtime: 20 Weeks **
Total Price:
248.47 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4 pcs.
62.118 €

Male connector DIN 41622, type TE Connectivity/AMP RP 622.

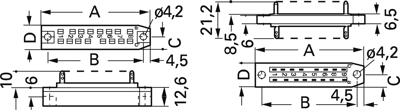

Version and technical data as for the DIN 41618 type described above. However, with the differences explained below. Operating current at +20 °C and with silver-plated contacts DIN 41622/VG 95322 8.0 A/10 A; with gold-plated contacts DIN 41622/VG 95322: 6.0 A/8.0 A. Operating voltage: 450 VDC/380 VRMS. Test voltage: 1500 VAC. Smallest air gap/creepage distance between the contacts: min. 1.5 mm. Operating capacitance: contact/contact in one row approx. 2.0 pF, contact/contact between adjacent rows approx. 1.8 pF, contact/mounting plate approx. 2.8 pF. Dimensions: A 83 mm, B 74 mm, C 10 mm, D 20 mm. Standards and certifications: DIN 41618, DIN 41640, DIN 40046, DIN IEC 68, DIN IEC 512.

Male connector with solder lugs, type -139.

Technical attributes (type, number of poles, contact finish, housing size): 1-1393726-0, 30-pole, silver-plated, size 5

Technical specifications
Anschluss Lötkelch
Kontaktart Stift
Kontaktoberfläche versilbert
Nennstrom 10 A
Orientierung gerade
Polzahl 30-polig
Logistics
Ursprungsland JP
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
