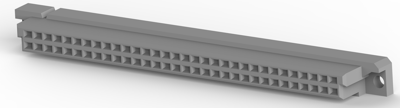

Eurocard connector, 5650860-5, TE Connectivity
Connector & Housing Type: Receptacle, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Female connector, DIN Size: Half, Number of Positions: 64, Number of Rows: 2, PCB Mount Orientation: Vertical, Number of Columns: 32, Rows Loaded: A, B, Operating Voltage: 250 VAC, Contact Base Material: Copper Alloy, Termination Method to Female connector: Through Hole - Solder, Termination Post & Tail Length: 3.3 mm, PCB Mount Retention: Without, Connector Mounting Type: Board Mount, Housing Color: Gray, Centerline (Pitch): 2.54 mm, PCB Thickness (Recommended): 1.57 mm, Row-to-Row Spacing: 2.54 mm, Operating Temperature Range: -55 – 105 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Box,Box & Tray
