5650868-5 | AMP

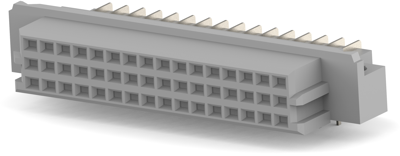

Female connector, 48 pole, a-b-c, pitch 2.54 mm, solder pin, tin-plated, 5650868-5
Order No.: 36P7718
EAN: 4099891012557
MPN:
5650868-5
Unit Price (€ / pc.)
3.7009 € *
Available: 0 pcs.
Available in 5 Days: 560 pcs.
Leadtime: 11 Weeks **
Eurocard connector, 5650868-5, AMP
Connector & Housing Type: Receptacle, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Female connector, DIN Size: Half, Position Locations Loaded: Fully Loaded, Number of Positions: 48, Number of Rows: 3, PCB Mount Orientation: Right Angle, Number of Columns: 16, Contact Base Material: Copper Alloy, Termination Method to Female connector: Through Hole - Solder, Termination Post & Tail Length: 2.79 mm, PCB Mount Retention: Without, Connector Mounting Type: Board Mount, Housing Color: Gray, Centerline (Pitch): 2.54 mm, Row-to-Row Spacing: 2.54 mm, Operating Temperature Range: -55 – 105 °C, Shielded: No, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Box
Technical specifications
| Anschluss | Lötstift | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Kontaktreihenbelegung | a-b-c | |
| Polzahl | 48-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
