487526-4 | AMP

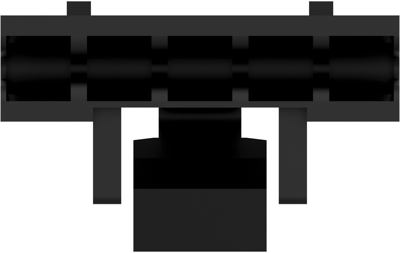

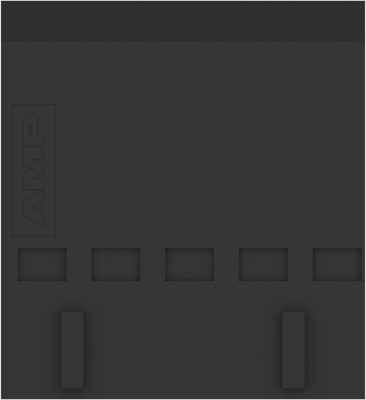

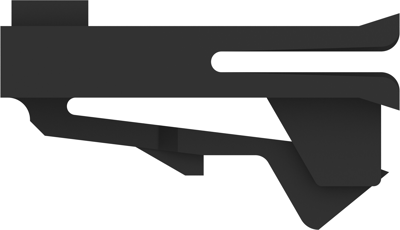

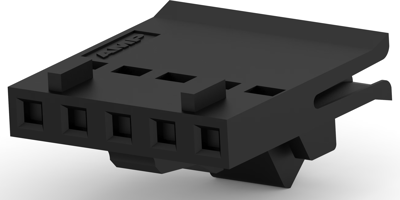

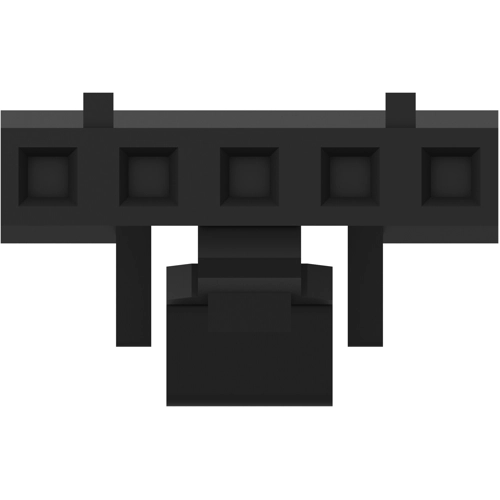

Connector, 5 pole, 1 row, pitch 2.54 mm, socket, 487526-4
Unit Price (€ / pc.)
1.3566 € *
Available: 0 pcs.
Available in 5 Days: 10,232 pcs.
Leadtime: 9 Weeks **
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
65 pcs.
1.3566 €
400 pcs.
1.1543 €
*incl. VAT plus shipping costs
**Subject to prior sale
FFC Connectors, 487526-4, AMP
Connector & Housing Type: Receptacle, FFC Connector Product Type: Housing, Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: FFC, Number of Positions: 5, Number of Rows: 1, Operating Voltage: 300 VAC, Contact Type: Socket, Mating Retention Type: Latch, Mating Retention: With, Mating Alignment: With, Panel Mount Feature: Without, Connector Mounting Type: Cable Mount (Free-Hanging), Housing Material: Thermoplastic, Centerline (Pitch): 2.54 mm, FFC Cable Entry: Straight, Housing Color: Black, Operating Temperature Range: -65 – 105 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Quantity: 1000, Packaging Method: Carton
Technical specifications
| Anzahl der Reihen | 1 | |
| Ausführung | Buchse | |
| Nennspannung | 300 V | |
| Polzahl | 5-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
