84981-8 | AMP

Connector, 8 pole, 1 row, pitch 1 mm, SMD, socket, tin-plated, 84981-8

Order No.: 36P7829
EAN: 4099891028527
MPN:
84981-8
Series: FPC
AMP

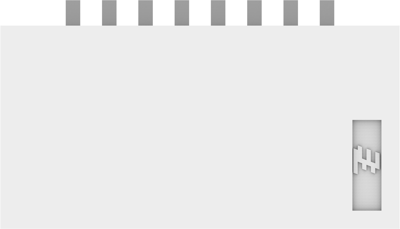

84981-8 AMP FFP/FPC Connectors, ZIF Connectors Image 1

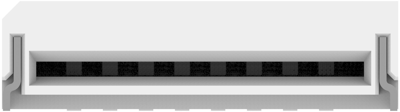

84981-8 AMP FFP/FPC Connectors, ZIF Connectors Image 2

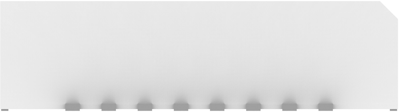

84981-8 AMP FFP/FPC Connectors, ZIF Connectors Image 3

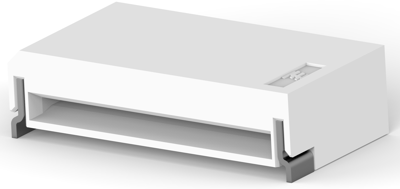

84981-8 AMP FFP/FPC Connectors, ZIF Connectors Image 4

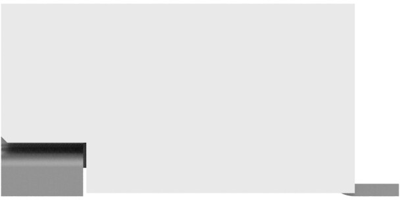

84981-8 AMP FFP/FPC Connectors, ZIF Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.3451 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
12000 pcs.
0.3451 €

FPC Connectors, 84981-8, AMP

Connector Product Type: Connector Assembly, Connector System: Flex-to-Board, Insertion Force Type: Non-ZIF, Sealable: No, Connector & Contact Terminates To: Flexible Printed Circuit (FPC),Printed Circuit Board, Number of Rows: 1, Number of Positions: 8, PCB Mount Orientation: Right Angle, Operating Voltage: 125 VAC, Contact Base Material: Phosphor Bronze, Contact Mating Location: Top, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 1 A, Termination Post & Tail Length: .7 mm, Termination Method to Printed Circuit Board: Surface Mount, Mating Alignment: Without, PCB Mount Alignment: Without, PCB Mount Retention: With, Connector Mounting Type: Board Mount, Housing Color: Natural, Centerline (Pitch): 1 mm, Connector Length: 11 mm, Connector Height: 3 mm, Connector Width: 6.3 mm, Accepts Flex Cable Thickness: .3 mm, Operating Temperature Range: -20 – 85 °C, Circuit Application: Signal, Circuit Identification Feature: Without, Packaging Method: Tape

Technical specifications
Connection SMD
Number of rows 1
Version socket
contact surface tin-plated
Rated voltage 125 V
Rated current 1 A
Pin number 8 pole
Grid 1 mm
Logistics
Country of origin IN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
