1-725996-2 | AMP

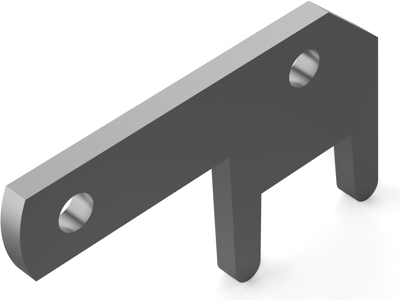

Faston plug, 2.8 x 0.8 mm, L 13.4 mm, uninsulated, angled, 1-725996-2
Unit Price (€ / pc.)
0.2904 € *
Available: 0 pcs.
Available in 5 Days: 14,200 pcs.
Leadtime: 12 Weeks **
Total Price:
0.29 € *
Price list
Quantity
Price per unit*
350 pcs.
0.2904 €
1800 pcs.
0.2428 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminals, 1-725996-2, AMP
FASTON: Yes, Terminates To: Printed Circuit Board, Connection Capacity: Single, Stud Hole: No, Terminal Angle: 90°, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: Brass, Terminal Size: 2.8, PCB Terminal Terminal Orientation: Flag, PCB Terminal Termination Method: Through Hole - Solder, Wire Insulation Support: Without, PCB Terminal Mating Tab Width: 2.8 mm, PCB Terminal Mating Tab Thickness: 0.8 mm, PCB Hole Diameter: 1.4 mm, Height Above PC Board: 5 mm, Receptacle Terminal Stock Thickness: 0.8 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40-105 °C, Packaging Quantity: 10000, PCB Terminal Packaging Method: Loose Piece
Technical specifications
| Connection | solder connection | |
| Version | faston plug | |
| Design | angled | |
| Isolated | No | |
| Length | 13.4 mm | |
| Material | brass, tin-plated | |
| Plug width x plug thickness | 2.8 x 0.8 mm | |
| Angulation | 90° |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
