1217089-1 | AMP

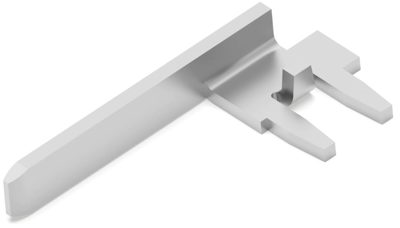

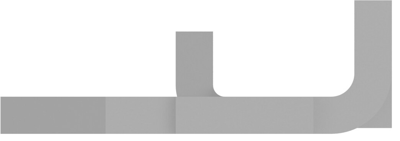

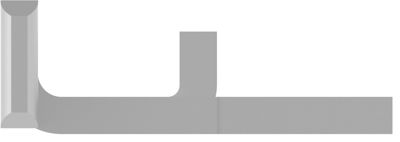

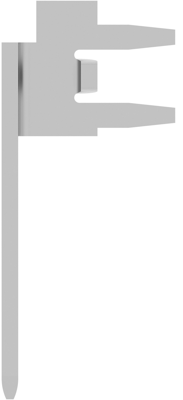

Faston plug, 2.79 x 0.81 mm, uninsulated, angled, 1217089-1
Order No.: 34P8745
EAN: 4099889614367
MPN:
1217089-1
Unit Price (€ / pc.)
0.1285 € *
Available: 0 pcs.
Leadtime: On Request **
PCB Terminals, 1217089-1, AMP
FASTON: Yes, Terminates To: Printed Circuit Board, Stud Hole: No, Terminal Angle: 90°, Plating Thickness: 2.54-5.08 µm, PCB Terminal Plating Material: Tin, Contact Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: Nickel, PCB Terminal Terminal Orientation: Flag, PCB Terminal Termination Method: Through Hole, Wire Insulation Support: Without, PCB Terminal PCB Thickness (Recommended): 3.18 mm, PCB Terminal Mating Tab Width: 2.79 mm, PCB Terminal Mating Tab Thickness: 0.8 mm, PCB Hole Diameter: 1.4 mm, Height Above PC Board: 4.67 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40-105 °C, Packaging Quantity: 3500, PCB Terminal Packaging Method: Reel
Technical specifications
| Connection | solder connection | |
| Version | faston plug | |
| Design | angled | |
| Isolated | No | |
| Material | tin-plated | |
| Plug width x plug thickness | 2.79 x 0.81 mm | |
| Angulation | 90° |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
