140759 | AMP

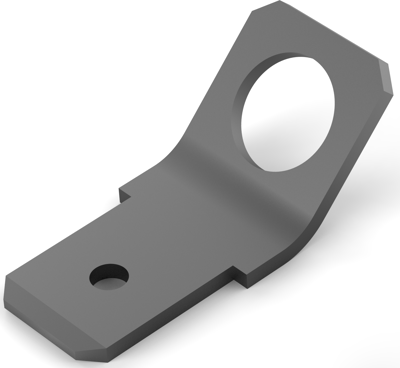

Faston plug, 6.35 x 0.81 mm, L 16.4 mm, uninsulated, angled, 140759
Unit Price (€ / pc.)
0.2440 € *
Available: 0 pcs.
Available in 5 Days: 3,364 pcs.
Leadtime: 10 Weeks **
Total Price:
0.24 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.2440 €
3000 pcs.
0.1987 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 140759, TE Connectivity
PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: 45°, PCB Terminal Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: Brass, PCB Terminal Terminal Orientation: Straight, PCB Terminal Termination Method: Through Hole, Stud Diameter: 5.2 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 3.3 mm, Operating Temperature Range: -30-110 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Carton
Technical specifications
| Connection | screw connection | |
| Version | faston plug | |
| Design | angled | |
| Isolated | No | |
| Length | 16.4 mm | |
| Material | brass, tin-plated | |
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| Angulation | 45° |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
