151467 | AMP

Faston plug, 4.6 x 0.78 mm, L 27.41 mm, insulated, straight, black, AWG 20-16, 151467

Order No.: 39P3353
EAN: 4099889615401
MPN:
151467
Series: PIDG
AMP

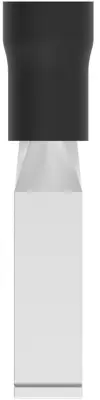

151467 AMP Flat Plugs Image 1

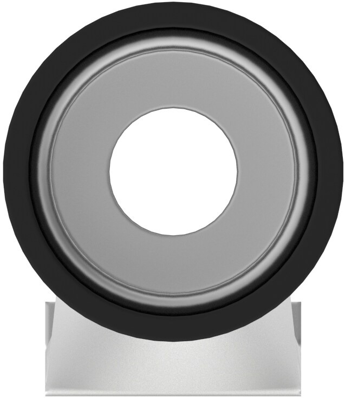

151467 AMP Flat Plugs Image 2

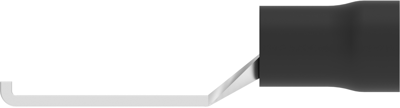

151467 AMP Flat Plugs Image 3

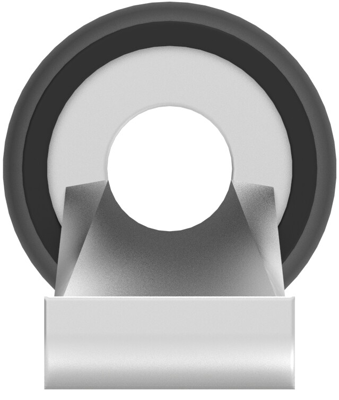

151467 AMP Flat Plugs Image 4

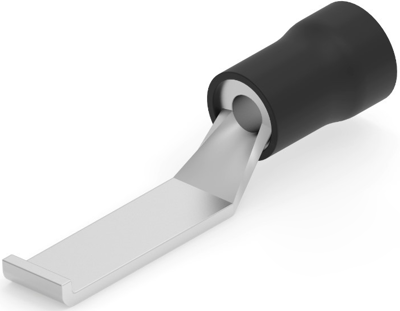

151467 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
4.6053 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.61 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6053 €
10 pcs.
4.2007 €
50 pcs.
3.7723 €
100 pcs.
3.4034 €
*incl. VAT plus shipping costs
**Subject to prior sale

Crimp Wire Pins, Tabs and Ferrules, 151467, AMP

Shape Description: WIRE PIN-005, Crimp Wire Pin, Tab & Ferrule Barrel Type: Closed Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Regular Wire, Sealable: No, Insulated: Yes, Insulation Color: Black, Crimp Wire Pin, Tab & Ferrule Plating Material: Copper,Tin, Terminal Length: 12 mm, Terminal & Splice Type: Tab, Crimp Wire Pin, Tab & Ferrule Terminal Type: Blade, Tab Thickness: 0.78 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Bullet Terminal: Without, Wire Insulation Support: With, DIN Wire Size: 0.5-1 mm², Crimp Wire Pin, Tab & Ferrule Tab Width: 4.6 mm, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 3.6 mm, Accepts Wire Insulation Diameter Range: 2.66-3.55 mm, Wire Size: 20-16 AWG, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Packaging Quantity: 1000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Box

Technical specifications
Connection crimp connection
Version faston plug
AWG cross-section AWG 20-16
Design straight
Insulation colour black
Isolated Yes
Length 27.41 mm
Material brass
Plug width x plug thickness 4.6 x 0.78 mm
Logistics
Country of origin IT
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
