160691-2 | AMP

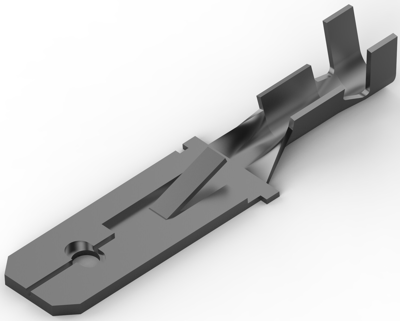

Faston plug, 6.3 x 0.8 mm, L 28 mm, uninsulated, straight, 0.3-0.8 mm², AWG 22-18, 160691-2
Unit Price (€ / pc.)
0.3011 € *
Available: 2,010 pcs.
Leadtime: 37 Weeks **
Total Price:
6.02 € *
Price list
Quantity
Price per unit*
20 pcs.
0.3011 €
50 pcs.
0.2713 €
200 pcs.
0.2392 €
500 pcs.
0.2035 €
*incl. VAT plus shipping costs
**Subject to prior sale
Tabs, type 0-016../0-004.
With snap-in hole, to DIN 46343, crimp connection.
Technical attributes (type, for conductor cross-section, insulation diameter): 0-0160691-2, 0.3 to 0.8 mm², 2.2 to 3.4 mm
Technical specifications
| Anschluss | Crimpanschluss | |
| Ausführung | Flachstecker | |
| AWG-Leiterquerschnitt | AWG 22-18 | |
| Bauform | gerade | |
| Isoliert | No | |
| Länge | 28 mm | |
| Leiterquerschnitt | 0,3-0,8 mm² | |
| Material | Messing, verzinnt | |
| Steckbreite x Steckdicke | 6,3 x 0,8 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369040 |
| Originalverpackung | Rolle mit 3.500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
