167892-2 | AMP

Flat plug distributor, 1 x 2 contacts, 6.3 x 0.8 mm, L 13 mm, uninsulated, angled, 167892-2

Order No.: 05F405
EAN: 4099889611717
MPN:
167892-2
0-0167892-2
Series: AMPOWER
AMP

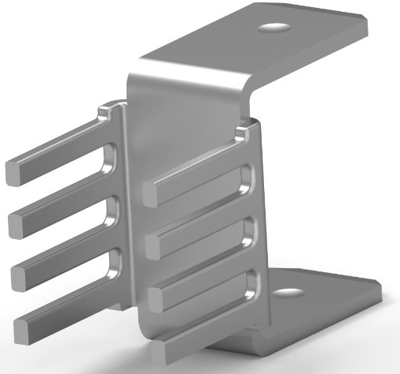

167892-2 AMP Flat Plugs Image 1

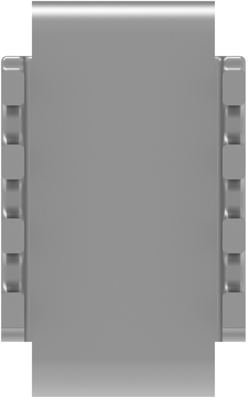

167892-2 AMP Flat Plugs Image 2

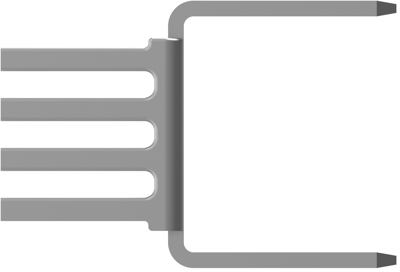

167892-2 AMP Flat Plugs Image 3

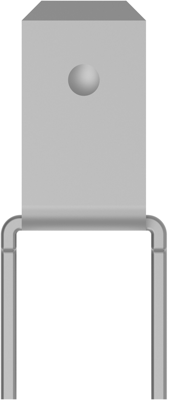

167892-2 AMP Flat Plugs Image 4

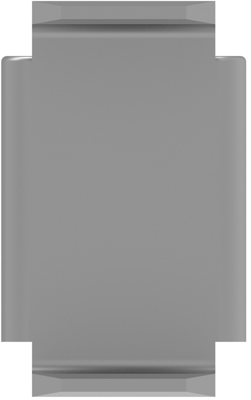

167892-2 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
2.8322 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.83 € *
Price list
Quantity
Price per unit*
40 pcs.
2.8322 €
250 pcs.
2.6299 €
500 pcs.
2.5347 €
*incl. VAT plus shipping costs
**Subject to prior sale

Multi-connectors, type TE Connectivity/AMP Action Pin.

Mating width: 6.3 mm. Mating thickness: 0.8 mm, made of tinned bronze, with 8 press-fit pins 0.8x0.8 mm for PCBs. Grid: 2.54 mm. Rated current: 24 A.

Type: 0-0167892-2, multi-connector

Technical specifications
Connection press connection
Version flat plug distributor, 1 x 2 contacts
Design angled
Isolated No
Length 13 mm
Material bronze, tin-plated
Plug width x plug thickness 6.3 x 0.8 mm
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
