170002-5 | AMP

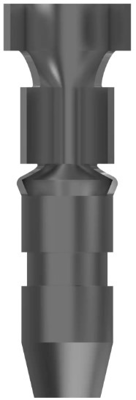

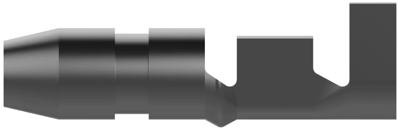

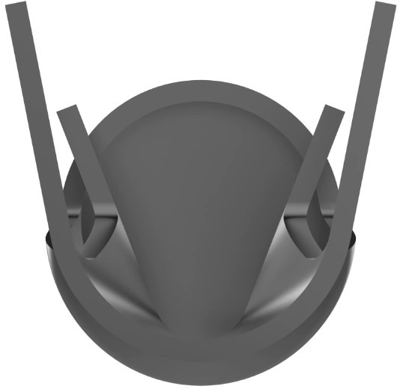

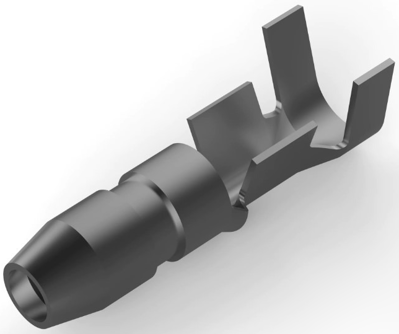

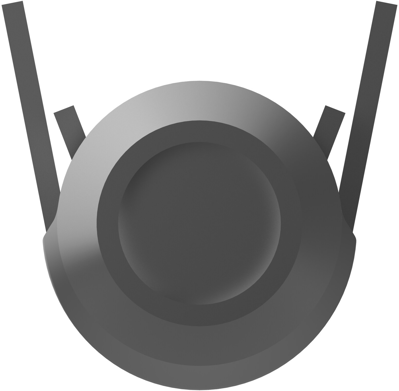

Round plug, Ø 4 mm, L 19.3 mm, uninsulated, straight, 0.5-2.27 mm², AWG 20-14, 170002-5
Order No.: 35P2558
EAN: 4099889614794
MPN:
170002-5
Unit Price (€ / pc.)
0.1369 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
2,052.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
15000 pcs.
0.1369 €
Crimp Wire Pins, Tabs and Ferrules, 170002-5, AMP
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Shur-Plug, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 4 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: With, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 3.68 mm, Accepts Wire Insulation Diameter Range: 2.5-3.68 mm, Wire Size: 20-14 AWG, Wire Size: 0.5-2.27 mm², Wire Size: 1021-4106 CMA, Insulation Requirement: Uninsulated, Heavy Duty: No, Packaging Quantity: 5000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Reel
Technical specifications
| Anschluss | Crimpanschluss | |
| Ausführung | Rundstecker | |
| AWG-Leiterquerschnitt | AWG 20-14 | |
| Bauform | gerade | |
| Durchmesser | 4 mm | |
| Isoliert | No | |
| Länge | 19.3 mm | |
| Leiterquerschnitt | 0,5-2,27 mm² | |
| Material | Messing |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
