324543 | AMP

Faston plug, 3.175 x 1.07 mm, L 30.33 mm, insulated, straight, yellow, 3.0-6.0 mm², AWG 12 to 10, 324543

Order No.: 39P3523
EAN: 4099889615456
MPN:
324543
Series: PIDG
AMP

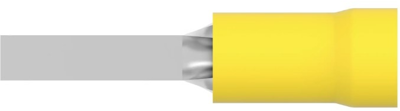

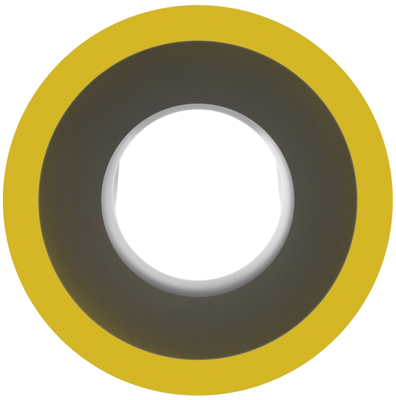

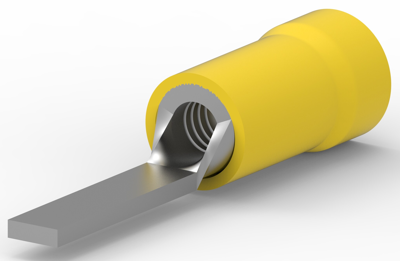

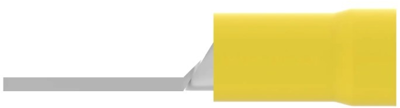

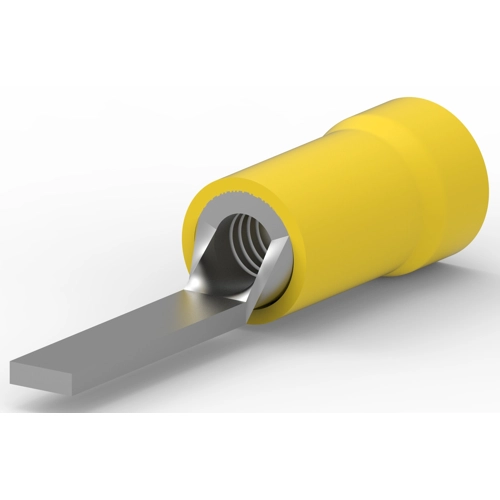

324543 AMP Flat Plugs Image 1
324543 AMP Flat Plugs Image 2
324543 AMP Flat Plugs Image 3

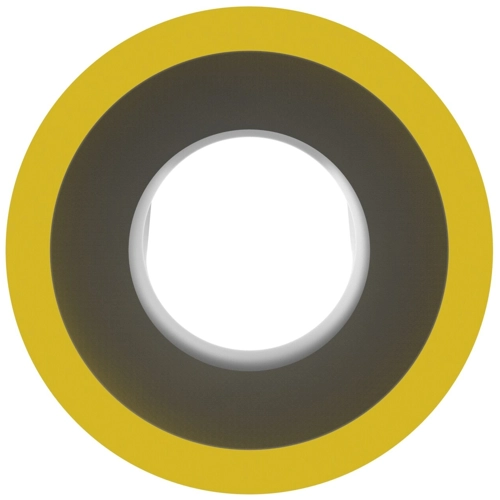

324543 AMP Flat Plugs Image 4

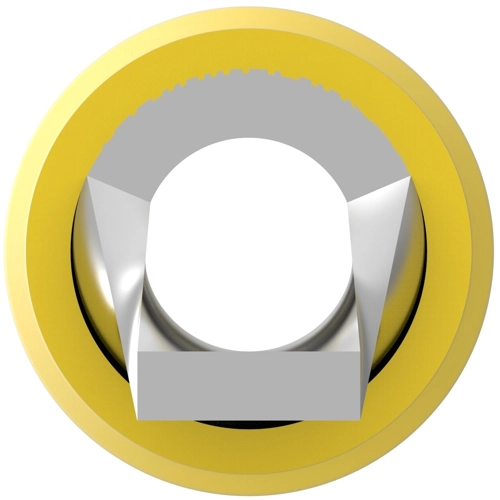

324543 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
1.9278 € *
Available: 0 pcs.
Available in 5 Days: 7,300 pcs.
Leadtime: 43 Weeks **
Total Price:
1.93 € *
Price list
Quantity
Price per unit*
50 pcs.
1.9278 €
300 pcs.
1.6065 €
*incl. VAT plus shipping costs
**Subject to prior sale

Crimp Wire Pins, Tabs and Ferrules, 324543, AMP

Crimp Wire Pin, Tab & Ferrule Barrel Type: Closed Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Regular Wire, Sealable: No, Insulated: Yes, Support Style: Insulation Support, Insulation Material: Nylon, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Terminal & Splice Type: Tab, Crimp Wire Pin, Tab & Ferrule Terminal Type: Tab, Tab Thickness: 1.07 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Bullet Terminal: Without, Wire Insulation Support: With, Crimp Wire Pin, Tab & Ferrule Tab Width: 30.07 mm, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 30.81-5.84 mm, Accepts Wire Insulation Diameter Range: 30.81-5.84 mm, Wire Size: 12-10 AWG, Wire Size: 3-6 mm², Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Crimp Wire Pin, Tab & Ferrule Packaging Method: Loose Piece, Barrel Color: Yellow

Technical specifications
Connection crimp connection
Version faston plug
AWG cross-section AWG 12 to 10
Design straight
Insulation colour yellow
Isolated Yes
Length 30.33 mm
Cable cross-section 3.0-6.0 mm²
Material copper, tin-plated
Plug width x plug thickness 3.175 x 1.07 mm
Logistics
Country of origin JP
Customs tariff number 85369040
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
