350221-1 | AMP

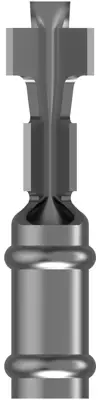

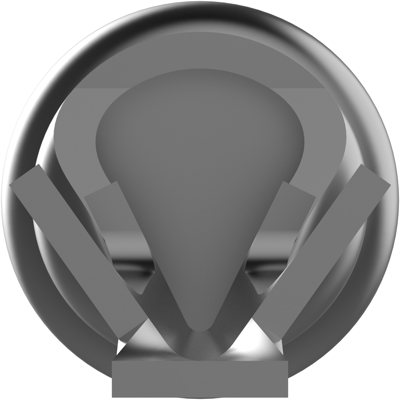

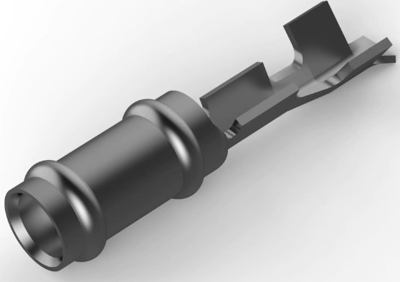

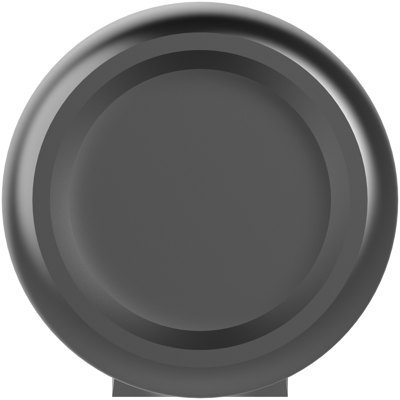

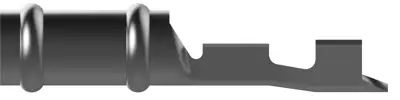

Round plug, Ø 2.36 mm, uninsulated, straight, 0.08-0.15 mm², AWG 28-26, 350221-1
Unit Price (€ / pc.)
0.1142 € *
Available: 0 pcs.
Available in 5 Days: 133,000 pcs.
Leadtime: 33 Weeks **
Total Price:
0.11 € *
Price list
Quantity
Price per unit*
758 pcs.
0.1142 €
28000 pcs.
0.0904 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminals, 350221-1, AMP
PCB Terminal Mounting Style: Stud Mount, Terminates To: Wire & Cable, Stud Hole: No, Terminal Angle: Straight, PCB Terminal Plating Material: Pre-Tin, Contact Plating Material: Tin, Terminal & Splice Type: Receptacle, PCB Terminal Terminal Type: Receptacle, PCB Terminal Mating Pin Diameter: 2.36 mm, Terminal Size: Miniature, PCB Terminal Termination Method: Crimp, Wire Insulation Support: With, PCB Terminal Wire Insulation Diameter (Max): 1.45 mm, Accepts Wire Insulation Diameter Range: 0.81-1.45 mm, Wire Size: 28-26 AWG, Wire Size: 0.08-0.15 mm², Receptacle Terminal Stock Thickness: 0.3 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -55-105 °C, Packaging Quantity: 7000, PCB Terminal Packaging Method: Package
Technical specifications
| Connection | crimp connection | |
| Version | round plug | |
| AWG cross-section | AWG 28-26 | |
| Design | straight | |
| diameter | 2.36 mm | |
| Isolated | No | |
| Cable cross-section | 0.08-0.15 mm² | |
| Material | phosphor bronze, tin-plated |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
