41291 | AMP

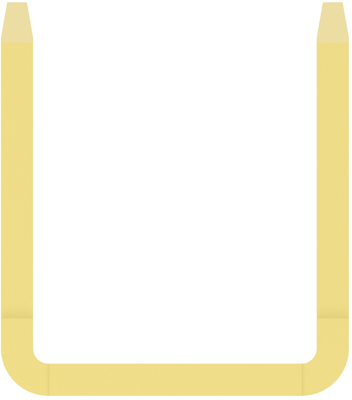

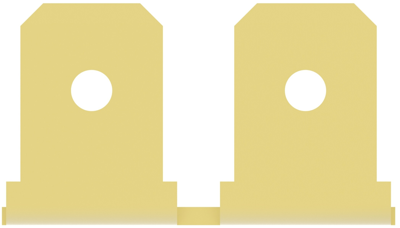

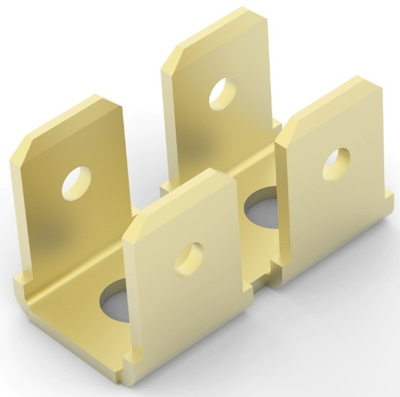

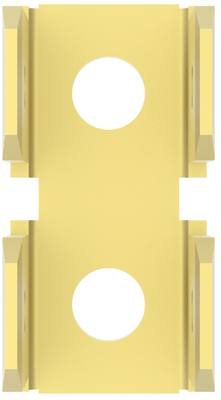

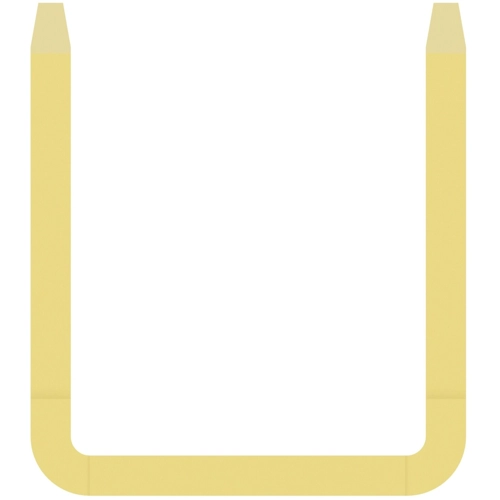

Flat plug distributor, 2 x 2 contacts, 6.35 x 0.81 mm, L 17.53 mm, uninsulated, angled, 41291
Unit Price (€ / pc.)
0.1785 € *
Available: 0 pcs.
Available in 5 Days: 6,000 pcs.
Leadtime: 22 Weeks **
Total Price:
0.18 € *
Price list
Quantity
Price per unit*
500 pcs.
0.1785 €
2500 pcs.
0.1749 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 41291, TE Connectivity
FASTON: Yes, PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: 90°, PCB Terminal Plating Material: Unplated, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: None, Terminal Size: 6.35, PCB Terminal Terminal Orientation: Right Angle, PCB Terminal Termination Method: Screw, Stud Diameter: 3.3 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 3.3 mm, Height Above PC Board: 9.91 mm, Operating Temperature Range: -30-110 °C, CSA Certified: Yes, Packaging Quantity: 500, PCB Terminal Packaging Method: Bag
Technical specifications
| Connection | screw connection | |
| Version | flat plug distributor, 2 x 2 contacts | |
| Design | angled | |
| Isolated | No | |
| Length | 17.53 mm | |
| Material | brass | |
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| Angulation | 90° |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
